1
Engine displacement
850
2
Year
2018
3
Trim
SPORTSMAN 850 SP EPS
4
Parts Catalog
ELECTRICAL, HEADLIGHTS
5
Parts Diagram
Parts Catalog
ELECTRICAL, HARNESS
by
ELECTRICAL, IGNITION SYSTEM

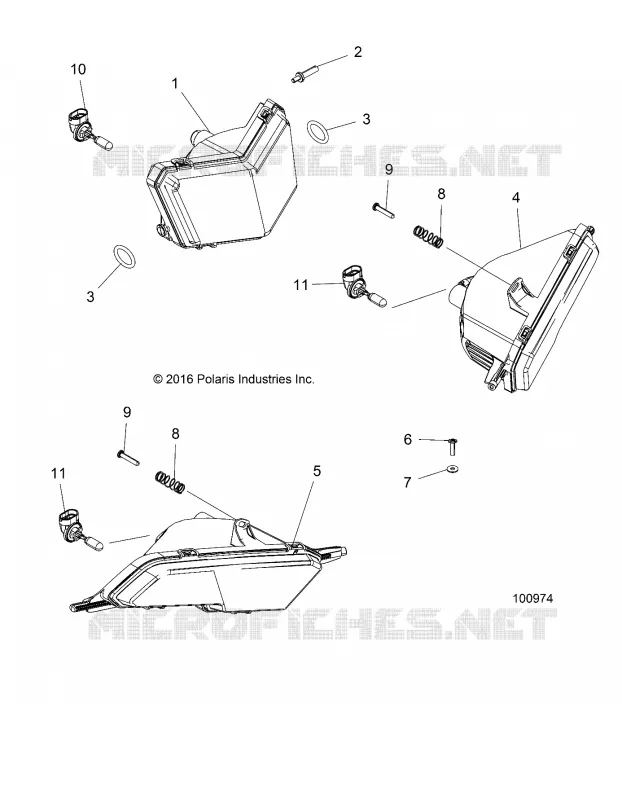

ELECTRICAL, HEADLIGHTS
1
ASM-HEADLIGHT POD [INCL. BULB]
2413427
$188,99 Unit Price incl. VAT
2
SCR-HEADLIGHT ADJUSTMENT
7518690
$10,49 Unit Price incl. VAT
3
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
4
ASM-HEADLIGHT BUMPER LH [INCL. BULB][TO 4/28/2023]
2413432
2417231
$204,74 Unit Price incl. VAT
5
ASM-HEADLIGHT BUMPER RH [INCL. BULB][TO 4/28/2023]
2413433
2417232
$204,74 Unit Price incl. VAT
6
SCREW-10X5/8-HI/LO PN-T25 TRX-M
7518238
$7,34 Unit Price incl. VAT
7
WASHER
7556034
$4,19 Unit Price incl. VAT
8
SPRING HEADLIGHT
7043816
$10,49 Unit Price incl. VAT
9
SCR-10X1.12 TX PN PLS-Y
7512078
$2,09 Unit Price incl. VAT
10
BULB-HEADLIGHT 50 WATT
4010253
$52,49 Unit Price incl. VAT
11
BULB-HEADLIGHT 50 WATT
4010253
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
