1
Engine displacement
850
2
Year
2018
3
Trim
SPORTSMAN 850 SP EPS
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, DRIVE SHAFT, FRONT
by
DRIVE TRAIN, MAIN GEARCASE INTERNALS

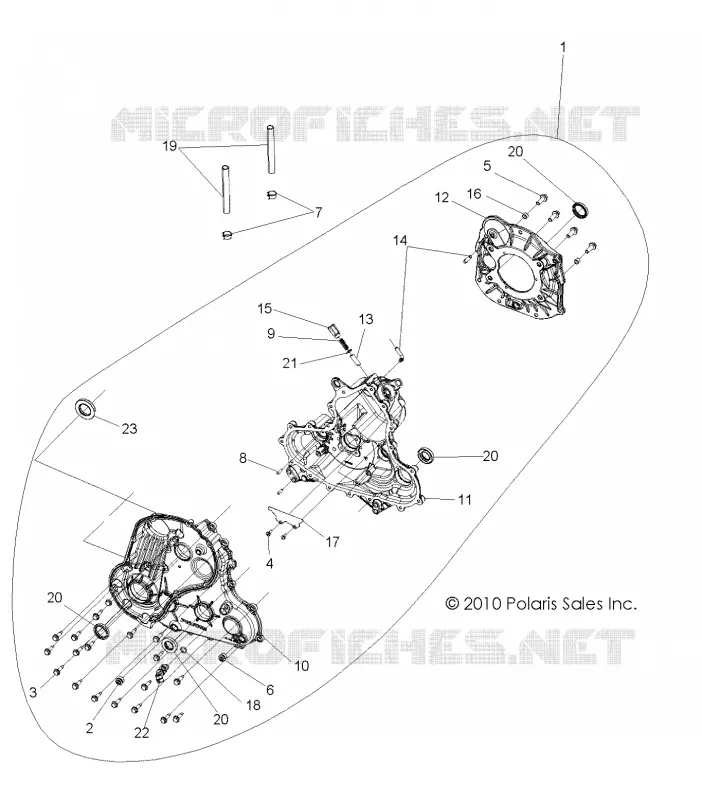

DRIVE TRAIN, MAIN GEARCASE
1
ASM. TRANSMISSION [INCL. ALL]
1332848
$4 866,74 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
4
SCREW 6-LOBE PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
5
SCREW HEX FLANGE HEAD M10 X 1.5 X 30
3234634
$25,19 Unit Price incl. VAT
6
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
7
CLAMP-HOSE 17/32 GREEN
7081432
$7,34 Unit Price incl. VAT
8
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
9
SPRING COMPRESSION 0.45 OD X 1.58
3234790
$47,24 Unit Price incl. VAT
10
GEARCASE GTO COVER MACH
3234689
$692,99 Unit Price incl. VAT
11
GEARCASE MAIN GTO MACH
3235428
$593,24 Unit Price incl. VAT
12
BELLHOUSING MACH
3235196
$68,24 Unit Price incl. VAT
13
Bullet Detent
3234695
$68,24 Unit Price incl. VAT
14
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
15
Plug Detent
3234715
$68,24 Unit Price incl. VAT
16
PIPE KNOCK
3234765
$26,24 Unit Price incl. VAT
17
Deflector Oil
3234725
$26,24 Unit Price incl. VAT
18
O-RING
3234302
$13,64 Unit Price incl. VAT
19
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
19
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
20
SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON
3234892
$68,24 Unit Price incl. VAT
21
O-RING 0.53 I.D X 0.082 WIDE
3234729
$25,19 Unit Price incl. VAT
22
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
23
SEAL 35 X 62 X 8
3234769
$78,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
