REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION STRUT
by
WINCH (BUILT 1/01/12 AND BEFORE)

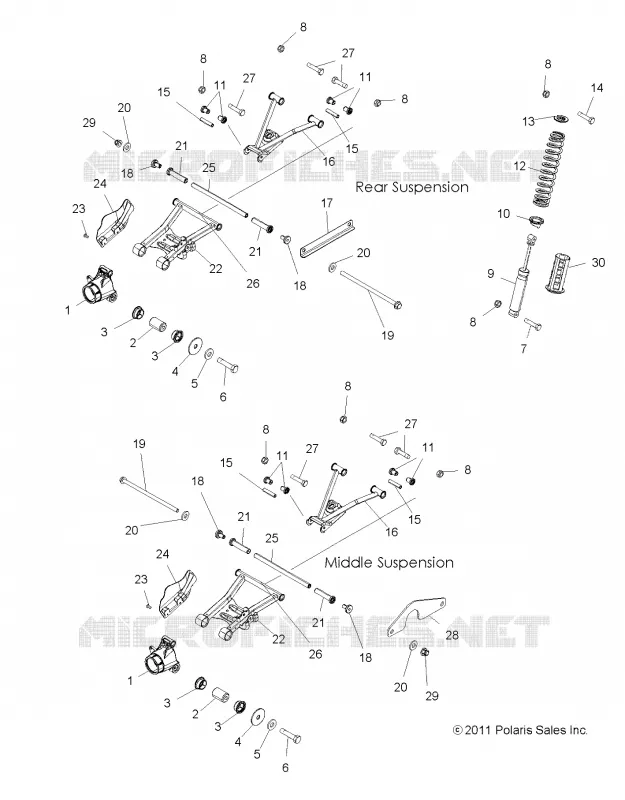

REAR SUSPENSION
1
1
2
2
3
3
3
3
4
4
5
5
6
6
14
8
8
8
8
8
8
8
8
9
10
11
11
11
11
12
13
14
15
15
15
15
16
16
16
16
17
18
18
18
18
19
19
20
20
20
20
21
21
21
21
22
22
22
22
23
23
24
24
24
24
25
25
26
26
27
27
27
27
28
29
29
30
1
CARRIER-BEARING WHEEL (MACH)
5135563
$121,79 Unit Price incl. VAT
2
BUSHING BEARING CARRIER
5632291
$41,99 Unit Price incl. VAT
3
BUSHING CONTROL LOWER BLACK
5438902
$8,39 Unit Price incl. VAT
4
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
5
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
6
Screw
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
9
SHOCK-RR IRS 6X6
7043451
$430,49 Unit Price incl. VAT
10
CAM-SPRING ADJUST 1-3/8
5631014
$68,24 Unit Price incl. VAT
11
Bushing A-Arm. Short Black [TO 9/9/2023]
5438895
5439270
$4,19 Unit Price incl. VAT
12
Spring Compression 130/165 Black
7041986067
$104,99 Unit Price incl. VAT
13
RETAINER-SPRING STEEL
5251753
$19,94 Unit Price incl. VAT
14
SCREW
7515415
$2,09 Unit Price incl. VAT
15
Shaft A-Arm. Short
5020826
$23,09 Unit Price incl. VAT
16
Arm Control Upper Black LH
1014320067
$178,49 Unit Price incl. VAT
16
Arm Control Upper Black RH
1014321067
$178,49 Unit Price incl. VAT
17
Strap Gearcase Rear Black
5252941067
$68,24 Unit Price incl. VAT
18
Bushing Pivot Wear
5136760
$16,79 Unit Price incl. VAT
19
SCR-3/8-24X12.25 FLG HX GR8-Y
7519065
$36,74 Unit Price incl. VAT
20
WASHER
7556153
$3,66 Unit Price incl. VAT
21
Bushing Control Arm
5436833
$9,44 Unit Price incl. VAT
22
Arm Control Lower Black LH
1015888067
$225,74 Unit Price incl. VAT
22
Arm Control Lower Black RH
1015889067
$225,74 Unit Price incl. VAT
23
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
24
SHIELD CV REAR RH MATTE BLACK
5435009070
$47,24 Unit Price incl. VAT
24
SHIELD CV REAR LH MATTE BLACK
5435008070
$47,24 Unit Price incl. VAT
25
Tube Pivot
5136759
$68,24 Unit Price incl. VAT
26
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
27
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
28
Strap Mid Gear Case Black
5252849067
Not Available
29
NUT-3/8-24 HEX LOC GR8
7547344
$1,56 Unit Price incl. VAT
30
Sleeve Shock Protector
5433551
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
