CHASSIS, FRAME FOR SPORTSMAN FOREST 800 6X6 - A12CF76FF FROM 2012

BRAKES, RIGHT HAND MASTER CYLINDER

DRIVE TRAIN, FRONT DRIVE SHAFT

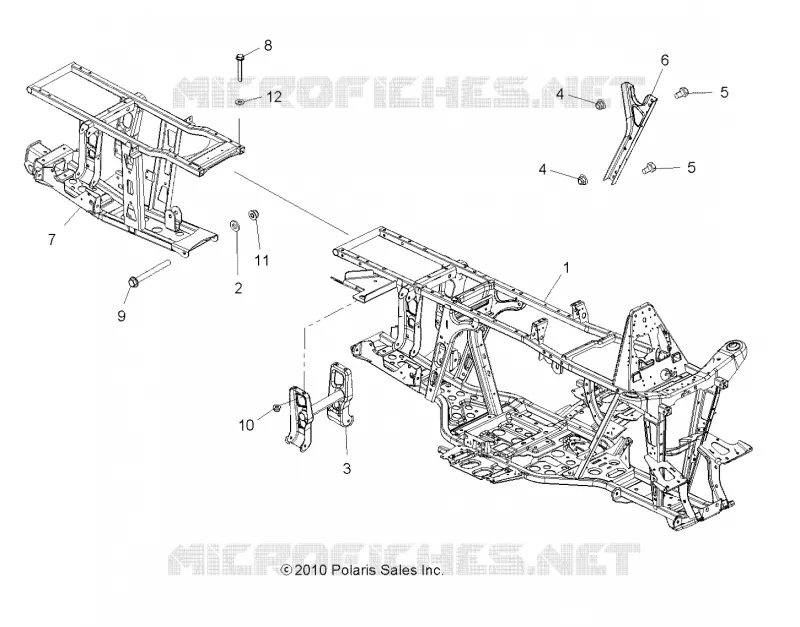

CHASSIS, FRAME

1

Frame Main Black 6X6

1017915067

Not Available

2

WASHER-7/16 SAE STF THRU-HRD-Y

7556212

$15,74 Unit Price incl. VAT

3

Support Black

1542636067

$225,74 Unit Price incl. VAT

4

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

5

SCR-5/16-18X3/4 HX/FLG GR5-Y

7515398

$4,19 Unit Price incl. VAT

6

Brace Support Frame Front Black LH

5253116067

Not Available

7

Frame Rear 6X6

1016757067

Not Available

8

SCREW

7515385

$10,49 Unit Price incl. VAT

9

SCR-7/16-20X7.25-HX-FL-CP-GR5Y

7519039

$52,49 Unit Price incl. VAT

10

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

11

NUT NYLOK

7547066

$3,14 Unit Price incl. VAT

12

WASHER FLAT .344x.875x.063

7555734

$1,56 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
