1
Engine displacement
800
2
Year
2012
3
Trim
SPORTSMAN FOREST 800 6X6 - A12CF76FF
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, MAIN GEARCASE INTERNAL

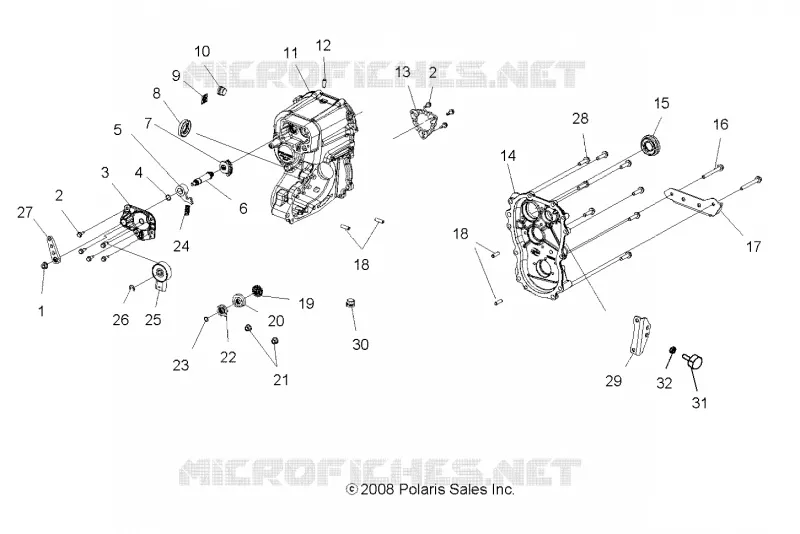

DRIVE TRAIN, MAIN GEARCASE
-
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
-
Asm. Gearcase [Incl. All]
1332716
$4 866,74 Unit Price incl. VAT
1
NUT LOCK HEX FLANGE NYLON 5/16-24
3233961
$5,24 Unit Price incl. VAT
2
SCREW
3233826
$17,84 Unit Price incl. VAT
3
COVER SECTOR GEARS MACHINED
3234188
$209,99 Unit Price incl. VAT
4
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
5
PAWL DETENT
3233829
$68,24 Unit Price incl. VAT
6
SHAFT SHIFT
3233831
$115,49 Unit Price incl. VAT
7
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
8
SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON
3234892
$68,24 Unit Price incl. VAT
9
Label Oil Fill/Level Check
3234143
Not Available
10
PLUG 3/4-16 41775 INTERNAL HEX
3233794
$31,49 Unit Price incl. VAT
11
Gearcase Main
3234358
Not Available
12
Tube Vent Hose
3233524
$15,74 Unit Price incl. VAT
13
PLATE PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
14
Gearcase LH
3234221
$666,74 Unit Price incl. VAT
15
Seal
3233866
3234851
$68,24 Unit Price incl. VAT
16
SCREW
3234042
$13,64 Unit Price incl. VAT
17
Bracket Transmission Mount
3234142
$52,49 Unit Price incl. VAT
18
PIN DOWEL
3233247
$13,64 Unit Price incl. VAT
19
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
20
DISC LOCKOUT
3233838
$52,49 Unit Price incl. VAT
21
NUT LOCK
3234043
$10,49 Unit Price incl. VAT
22
STAR DETENT
3233909
$52,49 Unit Price incl. VAT
23
O-RING -012 VITON
3233836
$12,59 Unit Price incl. VAT
24
SPRING COMPRESSION 0.36 O.D. X 1.125
3234578
$26,24 Unit Price incl. VAT
25
SWITCH ROTARY 6-PIN ITW [GEAR POSITION]
3233835
3236115
$225,74 Unit Price incl. VAT
26
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
27
BELLCRANK .510 HOLE 92 ~
3234584
$52,49 Unit Price incl. VAT
28
SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25
3234114
$13,64 Unit Price incl. VAT
29
Stop Torque
1016346
Not Available
30
MAGNETIC PLUG 3/4-16 INTERNAL HEX
3234529
3233794
$31,49 Unit Price incl. VAT
31
STOP-TORQUE COURSE 3/8-16 1.50
3021354
$47,24 Unit Price incl. VAT
32
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
