1
Engine displacement
570
2
Year
2014
3
Trim
RANGER 570 EFI - R14RH57AA/AC/AR/6EAZ
4
Parts Catalog
IGNITION
5
Parts Diagram
Parts Catalog
BARKE REAR CALIPER
by
CAM CHAIN AND SPROCKET

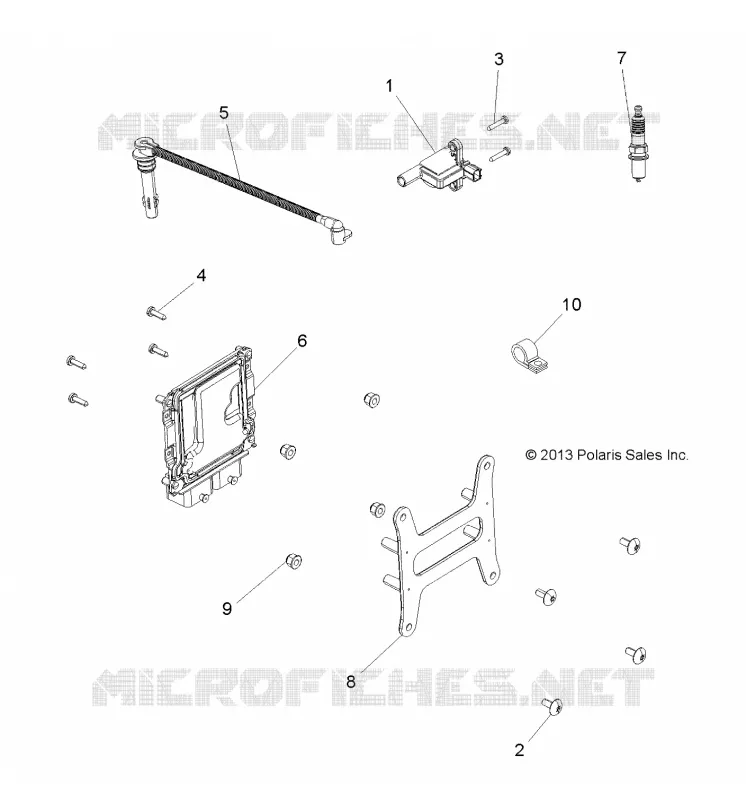

IGNITION
1
2
3
4
5
6
7
8
9
10
1
COIL IGNITION
4011834
4015072
$204,74 Unit Price incl. VAT
2
SCR-1/4-20X5/8 TORX TRUSS
7518905
$7,34 Unit Price incl. VAT
3
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$2,09 Unit Price incl. VAT
4
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
5
WIRE SPARK SLUG PTO
4012991
$99,74 Unit Price incl. VAT
6
ECU BASE M17
4012838
$892,49 Unit Price incl. VAT
7
Plug Spark
3022559
3022662
$17,84 Unit Price incl. VAT
8
MOUNT ECM BLACK
5450605070
$20,99 Unit Price incl. VAT
9
NUT-1/4-20 NYLOC FLANGED-B
7547494
$7,34 Unit Price incl. VAT
10
CLAMP-RUBBER COATED .75# ID
7081116
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
