1
Engine displacement
0
2
Year
1987
3
Trim
TRAIL ES - 0870762
4
Parts Catalog

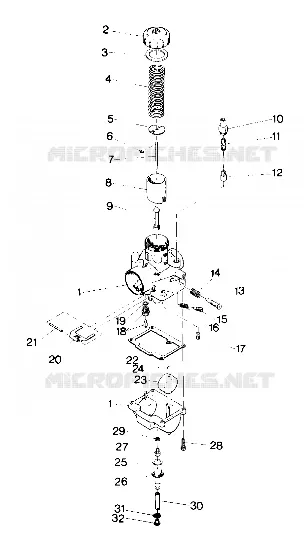

CARBURETOR TRAIL AND 400 (4912701270057A)
5
Parts Diagram
Parts Catalog
OIL PUMP 600 (4912701270052A)
by
CARBURETOR 600 (4912701270058A)
CARBURETOR TRAIL AND 400 (4912701270057A)
-
CARB. ASM. [No Longer Available] (lncl. 2-32) (400)
3130388
Not Available
1
CARB ASM. Substituted by 3130395 (Incl. 2-29)(TRAIL)
3130364
Not Available
2
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE
3130318
$47,24 Unit Price incl. VAT
5
PLATE THROTTLE Substituted by 3130027
3130216
3130027
$19,94 Unit Price incl. VAT
6
E RING(10) Substituted by 3130003
3130245
Not Available
7
JET NEEDLE
3130329
Not Available
7
JET NEEDLE (400)
3130374
Not Available
8
VALVE THROTTLE 3.0
3130372
$104,99 Unit Price incl. VAT
8
VALVE THROTTLE (2.0) Substituted by 3130464 (400)
3130375
Not Available
9
JET NEEDLE (P-6)
3130160
$73,49 Unit Price incl. VAT
9
NEEDLE JET (Q-2) (400)
3130376
Not Available
10
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
14
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
15
SCREW AIR Substituted by 3130011
3130233
Not Available
16
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
17
JET IDLER H30 Substituted by 3130065 (No. 30}
3130331
$18,89 Unit Price incl. VAT
18
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
19
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
20
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
21
PIN FLOAT Substituted by 3130235
3130240
3130361
$18,89 Unit Price incl. VAT
22
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
23
FLOAT ASM. Substituted by 3130430
3130032
Not Available
24
CAP
3130237
$8,39 Unit Price incl. VAT
25
O-RING
3130239
Not Available
26
NIPPLE Substituted by 5020476 (400)
3130387
$18,68 Unit Price incl. VAT
26
BOLT BANJO
3130321
$41,99 Unit Price incl. VAT
27
JET MAIN HX.HD#220(10)
3130125
$12,59 Unit Price incl. VAT
28
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
29
WASHER
3130014
$3,14 Unit Price incl. VAT
30
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
8450003-1525
$136,49 Unit Price incl. VAT
31
CLAMP
7080236
$3,14 Unit Price incl. VAT
32
RIVET (PLUG)(50) (400)
7661912
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
