1
Engine displacement
0
2
Year
1987
3
Trim
TRAIL ES - 0870762
4
Parts Catalog
DRIVE CLUTCH SPORT, TRAIL, 400 AND 600 (4912701270023A)
5
Parts Diagram
Parts Catalog
SUSPENSION SPORT TRAIL, 400 AND 600 (4912701270013A)
by
COOLING SYSTEM 400 (4912701270024A)

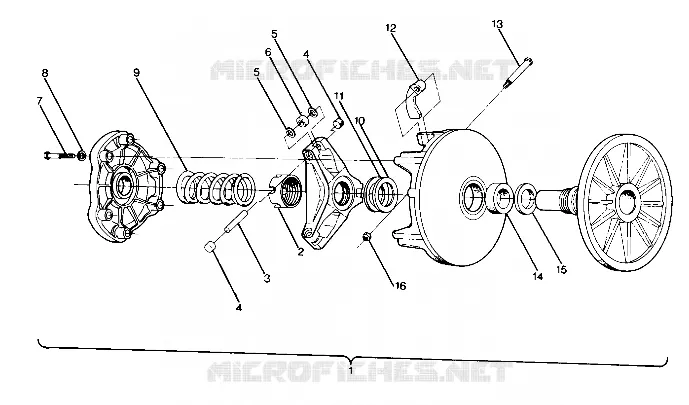

DRIVE CLUTCH SPORT, TRAIL, 400 AND 600 (4912701270023A)
-
CLUTCH DRIVE #22 Substituted by 1321576 (Incl. 2-8) (400)
1321481
Not Available
-
CLUTCH BASIC#21 DRIVE Substituted by 1321578 (Incl. 2-8) (600)
1321480
Not Available
1
CLUTCH BASIC #17 Substituted by 1321597 (Incl. 2-8 10 11 13)
1321463
Not Available
2
Nut Jam
5020425
$41,99 Unit Price incl. VAT
3
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
4
BUTTON Substituted by 5430445
5430728
5430445
$11,54 Unit Price incl. VAT
5
WASHER Substituted by 5430945
5430702
5438247
$3,14 Unit Price incl. VAT
6
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
7
BOLT (10)
7512265
$7,34 Unit Price incl. VAT
8
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
9
SPRING-RED&WHITE (Red/White)
7041150
Not Available
9
SPRING DRIVE CLUTCH BLUE
7041080
$115,49 Unit Price incl. VAT
10
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
11
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
11
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
12
WEIGHT .010(6) Substituted by 1321526 (10) (TRAIL)
5630272
$73,49 Unit Price incl. VAT
12
WEIGHT 15(6) (15) (600 600LE)
5630274
Not Available
12
WEIGHT (10 MOD)(6) Substituted by 1321528 (10 Mod)(400)
5630273
Not Available
13
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
14
SLEEVE BEARING
3576502
$40,94 Unit Price incl. VAT
15
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT
16
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
