COOLING SYSTEM SCRAMBLER W957840 (4927252725A010)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING SCRAMBLER W957840 (4927252725A009)
by
EXHAUST SYSTEM SCRAMBLER W957840 (4927252725A011)

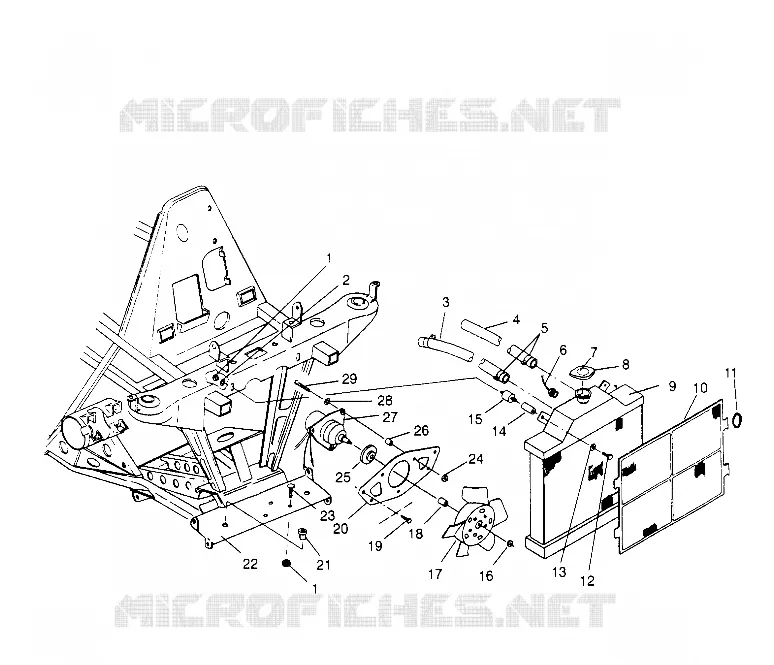

COOLING SYSTEM SCRAMBLER W957840 (4927252725A010)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
2
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
3
HOSE LOWER ENGINE Substituted by 5411173
5410572
$178,49 Unit Price incl. VAT
4
HOSE ENG UPPER
5410570
$89,24 Unit Price incl. VAT
5
CLAMP-HOSE Substituted by 7080547
7080225
Not Available
6
SWITCH THERMAL FAN
4110178
Not Available
7
DECAL(CPSC) RAD.CAP
7073068
Not Available
8
CAP RADIATOR Substituted by 2511270
2511189
$47,24 Unit Price incl. VAT
9
RADIATOR
1240006
Not Available
10
COVER RADIATOR W/MESH
5431760
Not Available
11
O-Ring
5410607
Not Available
12
BOLT
7512113
$7,34 Unit Price incl. VAT
13
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
14
SPACER MOUNT
5020572
$16,79 Unit Price incl. VAT
15
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
16
NUT
3083952
Not Available
17
BLADE FAN
5240822
$92,28 Unit Price incl. VAT
18
BUSHING
3083950
Not Available
19
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
20
BRKT COOLING FAN Substituted by 5224741-067
5222559067
Not Available
21
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
22
GUARD LOW.RADIATOR BLK.
5240873067
Not Available
23
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
24
NUT-8-32 HX LK GR A-Y
7541915
Not Available
25
COVER
3083951
Not Available
26
SPACER FAN BRKT.
5333073
$6,18 Unit Price incl. VAT
27
MOTOR FAN Substituted by 3084266
2410006
Not Available
28
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
29
Screw
7511874
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
