1
Engine displacement
0
2
Year
1995
3
Trim
scrambler-4x4-w957840
4
Parts Catalog

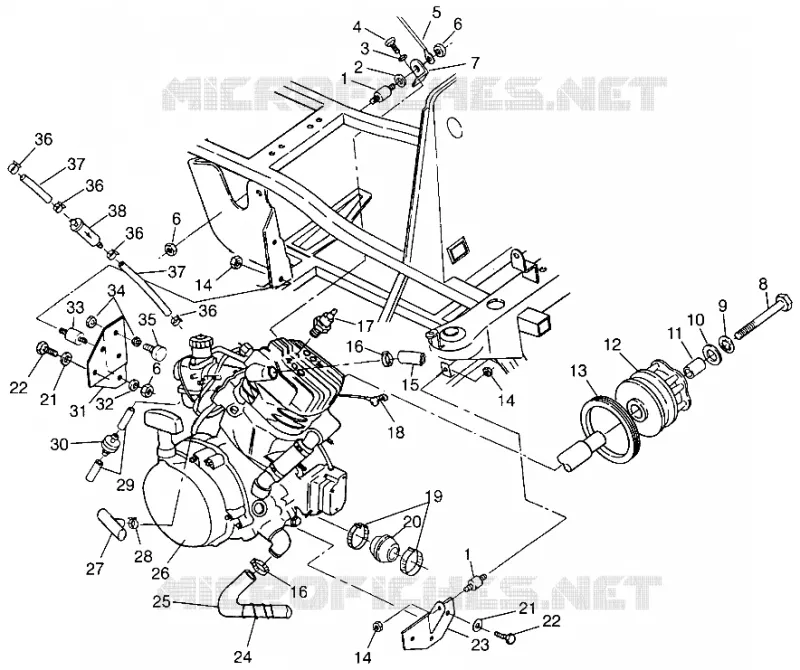

ENGINE MOUNTING SCRAMBLER W957840 (4927252725A009)
5
Parts Diagram
Parts Catalog
DECALS SCRAMBLER W957840 (4927252725A008)
by
COOLING SYSTEM SCRAMBLER W957840 (4927252725A010)
ENGINE MOUNTING SCRAMBLER W957840 (4927252725A009)
1
1
2
3
4
5
6
6
6
7
8
9
10
11
13
13
14
14
14
15
16
16
17
18
19
20
21
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
36
36
37
37
38
1
MT. RUBBER ENG.
3110038
Not Available
2
INSULATOR MOTOR MT.
5430802
$52,49 Unit Price incl. VAT
3
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
4
BOLT(10)
7515321
Not Available
5
CABLE GROUND/ENG.
4010067
Not Available
6
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
7
MOUNT ENG.TOP
5222415067
Not Available
8
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
9
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
10
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
11
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
Nut
7542403
Not Available
15
HOSE ENG UPPER
5410570
$89,24 Unit Price incl. VAT
16
CLAMP-HOSE Substituted by 7080547
7080225
Not Available
17
SPARKPLUG (10)
3070156
$7,34 Unit Price incl. VAT
18
CABLE SOLENOID/STARTER
4010064
Not Available
19
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
20
BOOT CLUTCH INTAKE(400)
5410883
$12,80 Unit Price incl. VAT
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
22
SCREW
7512490
$7,34 Unit Price incl. VAT
23
MOUNT ENGINE
1040231067
Not Available
24
SPRING HOSE RETAINER
7041079
$7,97 Unit Price incl. VAT
25
HOSE LOWER ENGINE Substituted by 5411173
5410572
$178,49 Unit Price incl. VAT
26
ENG.(S.B.)EC38PL-SB [No Longer Available]
3084718
Not Available
27
BOTTLE BOOST
5431982
$25,08 Unit Price incl. VAT
28
CLAMP(10)
7080533
$7,34 Unit Price incl. VAT
29
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
30
CHECKVALVE VENT Substituted by 7051011
7052047
Not Available
31
MOUNT REAR MOTOR BLK.
5240542067
Not Available
32
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
33
MOUNT RUBBER ENG.
3110042
Not Available
34
NUT JAM [ACCESSORY]
7542432
$7,34 Unit Price incl. VAT
35
MT TORQUE STOP RUBBER
3110048
$11,96 Unit Price incl. VAT
36
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
37
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
38
FILTER
2530009
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
