WATER PUMP XPLORER 4X4 W959140 (4930223022D003)
5
Parts Diagram
Parts Catalog
CRANKCASE AND CYLINDER XPLORER 4X4 W959140 (4930223022D001)
by
OIL PUMP

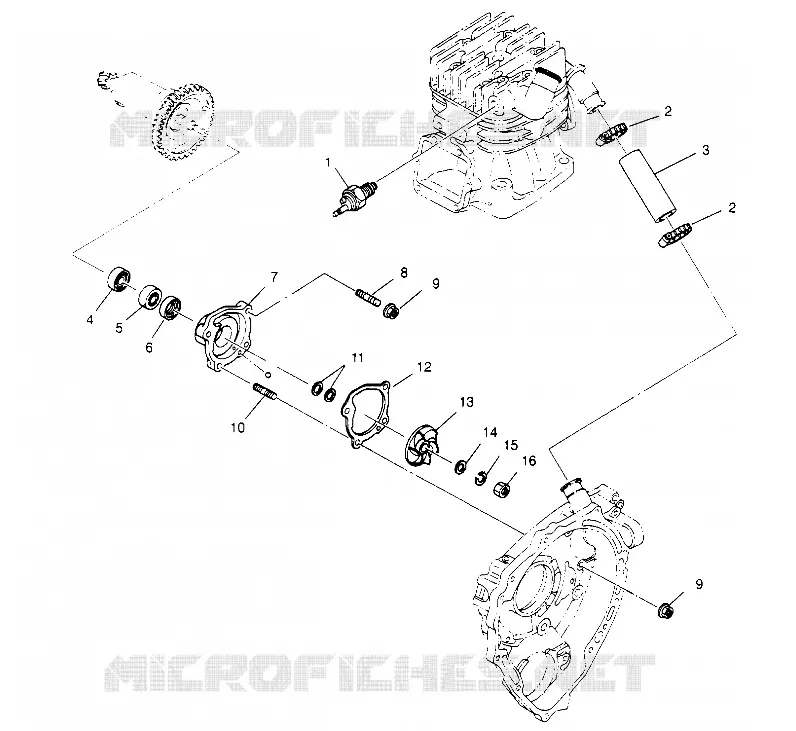

WATER PUMP XPLORER 4X4 W959140 (4930223022D003)
1
2
2
3
4
5
6
7
7
7
7
8
9
9
10
11
11
11
11
12
13
14
15
16
1
2
3
4
5
5
5
5
6
7
7
7
7
8
9
1
SWITCH THERMAL IOS
3084284
Not Available
2
CLAMP HOSE Substituted by 3086774
3084191
Not Available
3
HOSE MAIN Substituted by 3086773
3084190
Not Available
4
BEARING BALL
3084183
Not Available
5
SEAL OIL
3084184
Not Available
6
SEAL OIL
3084185
Not Available
7
CASE WATER PUMP Substituted by 3086770 (Incl. 4-8 10)
3085084
Not Available
7
CASE WATER PUMP Substituted by 3084754 (Incl. 8 10)
3085085
Not Available
8
STUD Substituted by 3086775
3085086
Not Available
9
NUT FLANGE
3083856
$4,19 Unit Price incl. VAT
10
STUD Substituted by 3086772
3084520
Not Available
11
SPACER #3 (0.1)
3084188
Not Available
11
SPACER #4 (0.2)
3084189
Not Available
12
GASKET (Casing)
3084187
Not Available
13
IMPELLER
3084186
Not Available
14
WASHER
3082206
$1,04 Unit Price incl. VAT
15
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
16
NUT
3083073
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
