1
Engine displacement
0
2
Year
1995
3
Trim
XPLORER - W959140
4
Parts Catalog
DRIVE CLUTCH ASSEMBLY XPLORER 4X4 W959140 (4930223022C003)
5
Parts Diagram
Parts Catalog
SWING ARM SHOCK XPLORER 4X4 W959140 (4930223022C002)
by
DRIVEN CLUTCH ASSEMBLY XPLORER 4X4 W959140 (4930223022C004)

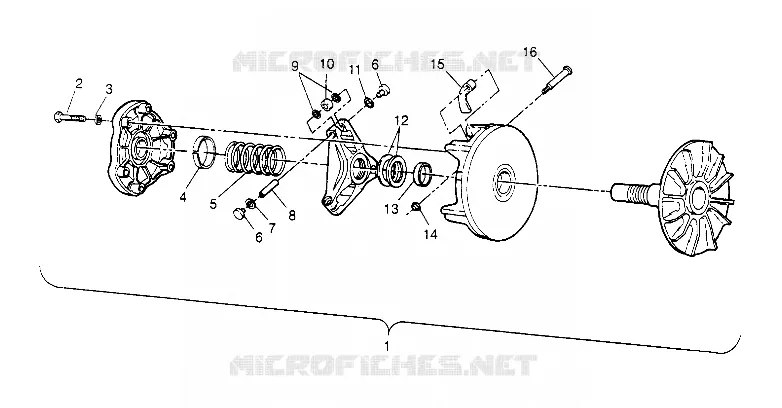

DRIVE CLUTCH ASSEMBLY XPLORER 4X4 W959140 (4930223022C003)
1
2
3
4
5
6
6
7
8
9
10
11
12
12
12
12
12
12
12
12
12
13
14
15
16
1
CLUTCH DRIVE(ATV-06) (Incl. All Less 4 9)
1321632
1321976
$1 081,49 Unit Price incl. VAT
2
BOLT(10) Substituted by 7512163
7512176
7512163
$7,34 Unit Price incl. VAT
3
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
4
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
5
SPRING CLUTCH
7041157
$89,24 Unit Price incl. VAT
6
Button Clutch
5431936
5439254
$14,69 Unit Price incl. VAT
7
WASHER RUBBER [USA ONLY]
5410609
$3,14 Unit Price incl. VAT
8
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
9
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
10
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
11
O RING(10)
5410610
$10,49 Unit Price incl. VAT
12
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
12
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
12
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
13
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
14
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
15
WEIGHT SHIFT S-55(6) (S-55)
5630509
$62,99 Unit Price incl. VAT
16
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
