1
Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 SP
4
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, MAIN GEARCASE

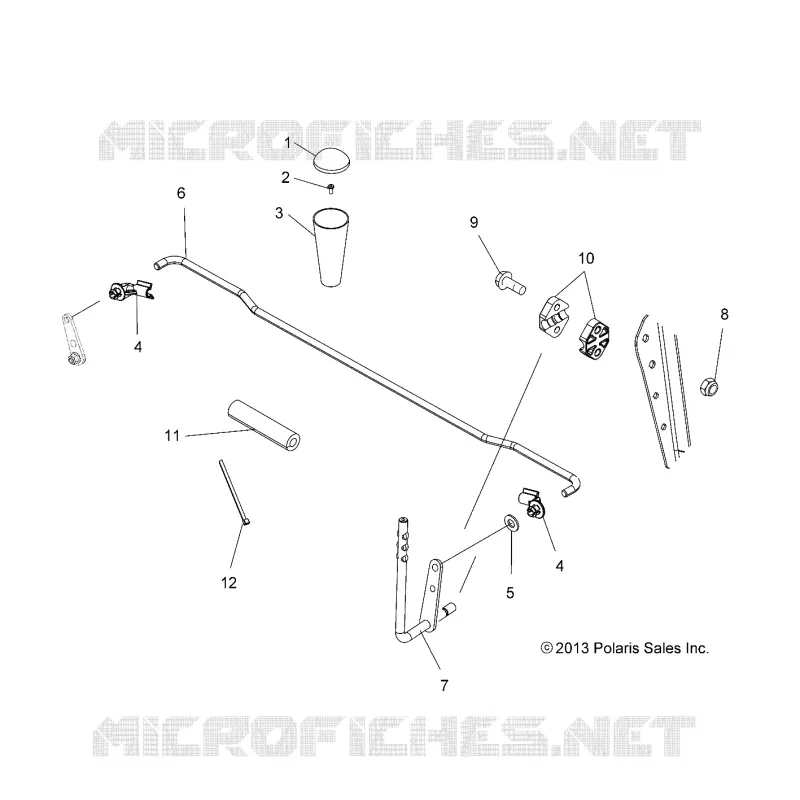

DRIVE TRAIN, GEAR SELECTOR
1
2
3
4
4
5
6
7
8
9
10
11
12
1
COVER SHIFT
5450575
$24,14 Unit Price incl. VAT
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
KNOB GEAR SELECTOR SHIFT
5414569
$26,24 Unit Price incl. VAT
4
BUSHING SNAP LINKAGE
5436722
$7,34 Unit Price incl. VAT
5
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
6
ROD SHIFTER
5336845
$68,24 Unit Price incl. VAT
7
HANDLE SHIFT HANDLE BLACK
1015598067
$125,99 Unit Price incl. VAT
8
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
9
Bolt Flange
7518342
$6,29 Unit Price incl. VAT
10
MOUNT GEAR SELECTOR
5435042
$12,59 Unit Price incl. VAT
11
HOSE SLIT
5414141
$20,99 Unit Price incl. VAT
12
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
