1
Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 SP
4
Parts Catalog

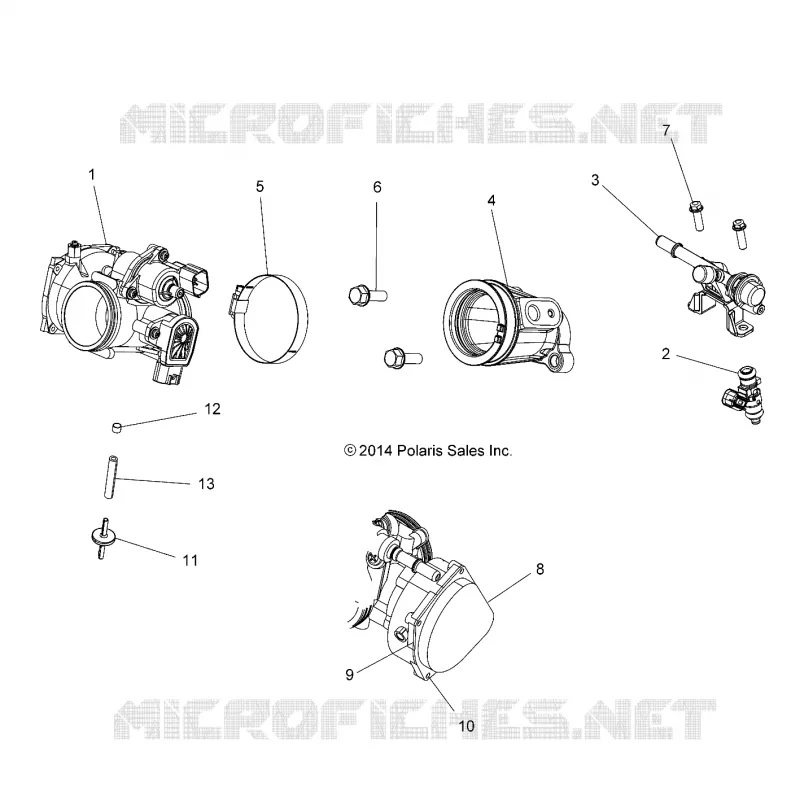

THROTTLE BODY AND FUEL RAIL
5
Parts Diagram
Parts Catalog
THERMOSTAT and COVER
by
ENGINE, VALVE COVER
THROTTLE BODY AND FUEL RAIL
1
2
3
4
5
6
7
8
9
10
11
12
13
1
ASM. THROTTLE BODY
1204963
1205009
$682,49 Unit Price incl. VAT
2
INJ-FUEL EV14COMPACT 200G
2521068
$188,99 Unit Price incl. VAT
3
RAIL FUEL
2521403
$206,63 Unit Price incl. VAT
4
ADAPTER THROTTLE BODY [BUILT 9/1/15 AND BEFORE]
5414598
$152,24 Unit Price incl. VAT
5
CLAMP-HOSE 70MM DIA. WORM GEAR
7081623
$5,76 Unit Price incl. VAT
6
SCR-M8X1.25X25-HX/FL-Y/D
7516734
$5,76 Unit Price incl. VAT
7
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
8
COVER-THROTTLE BODY STEPPED
5257657
$83,99 Unit Price incl. VAT
9
O-RING THROTTLE CAM COVER
5413898
$20,99 Unit Price incl. VAT
10
SCREW
7519292
$1,56 Unit Price incl. VAT
11
VALVE CHECK
7052038
$20,99 Unit Price incl. VAT
12
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
13
FUEL LINE-55 CENTIMETERS
845000355
8450003-1525
$136,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
