ELECTRICAL, WIRE HARNESS, CHASSIS FOR RZR PRO XP 4 ULTIMATE ROCKFORD FOSGATE LE FROM 2022

ELECTRICAL, OPTION, AUDIO, REAR

ELECTRICAL, WIRE HARNESS, PERIPHERAL

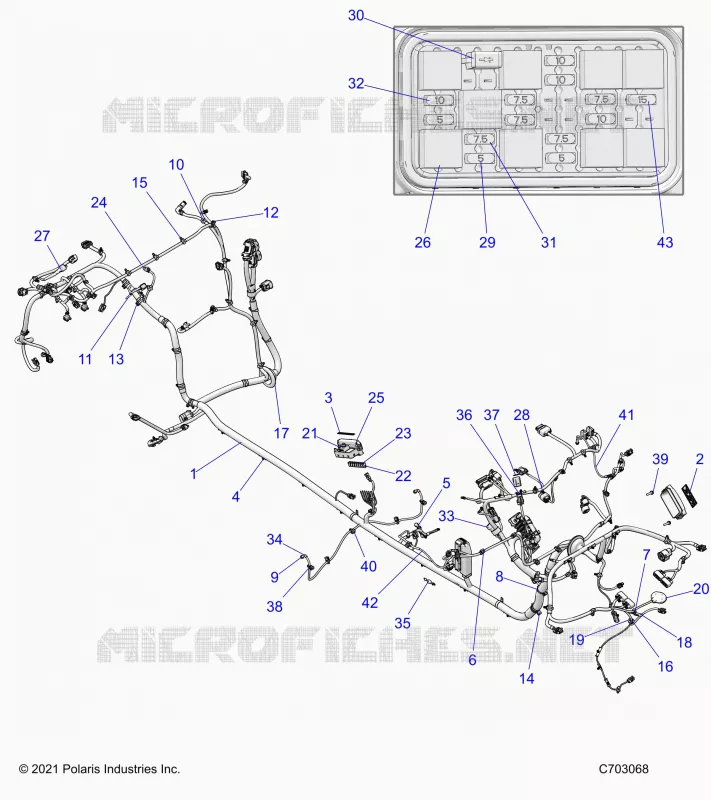

ELECTRICAL, WIRE HARNESS, CHASSIS

1

HARN-CHASSIS RZR T RV MP DX LE [INCL. 2-26 28-43]

2416291

$2 887,49 Unit Price incl. VAT

2

LABEL-FUSE BOX

7197253

Not Available

3

LABEL-PDM RZR

7189870

Not Available

4

CLIP-XMAS 6.35MM HOLE TAPE-ON

7082411

$6,29 Unit Price incl. VAT

5

CLIP-FIR TREE 12.5MM OFF 90DEG

7082406

$6,29 Unit Price incl. VAT

6

CLIP-EDGE 1-3mm THICKNESS

7082403

$9,44 Unit Price incl. VAT

7

CLIP-EDGE 1-3mm THICKNESS

7082402

$13,64 Unit Price incl. VAT

8

CLIP-EDGE 3-6MM THICKNESS

7082399

$10,49 Unit Price incl. VAT

9

CLIP - ROUTING DIN BOX (R MODELS)

7082020

$10,49 Unit Price incl. VAT

10

CABLE TIE-FIR TREE

7082003

$6,29 Unit Price incl. VAT

11

STRAP-PANDUIT DBL LOOP 260MM

7081916

$9,44 Unit Price incl. VAT

12

CLIP EDGE HARNESS

7081890

$19,94 Unit Price incl. VAT

13

CLIP-EDGE DIA5-50MM OUT-SER

7081824

$26,24 Unit Price incl. VAT

14

CLIP-EDGE 1-3MM 6-45MM SERT.

7081808

$10,49 Unit Price incl. VAT

15

CLIP-ROUTING

7081496

$9,44 Unit Price incl. VAT

16

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

17

GROMMET - 65 MM BLK

5813954

$13,64 Unit Price incl. VAT

18

CAP - VINYL 125X375 BLACK

5438230

$10,49 Unit Price incl. VAT

19

GROMMET SPEAKER VOLUME

5413027

$5,24 Unit Price incl. VAT

20

ANTENNA GPS EXT

4018662

$209,99 Unit Price incl. VAT

21

FUSE-ZCASE 200A

4018415_200

Not Available

22

FUSE-MCASE SLOTTED 40A

4018414_40

Not Available

23

FUSE-MCASE SLOTTED 30A

4018414_30

Not Available

24

CAP EVAP CONNECTOR

4018066

$8,39 Unit Price incl. VAT

25

FUSE-PDM (INCL. 15 27 31)

4017598

$104,99 Unit Price incl. VAT

26

RELAY - SPST 12V 20A EPXY HFA

4016819

$68,24 Unit Price incl. VAT

27

HARN-TMAP 505MM

2416468

$83,99 Unit Price incl. VAT

28

COVER - DIAGNOSTIC W/ CLIP

4012170

$16,79 Unit Price incl. VAT

29

FUSE-5A MINI BLADE

4011652

$20,99 Unit Price incl. VAT

30

DIODE-6AMP

4011474

$83,99 Unit Price incl. VAT

31

FUSE - 7.5 MINI BLADE (BROWN)

4011068

$23,09 Unit Price incl. VAT

32

FUSE-IGNITION 10 AMP

2434016

$10,49 Unit Price incl. VAT

33

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$18,89 Unit Price incl. VAT

34

LED - PANEL MNT 12V BLUE (R MODELS)

2413217

$99,74 Unit Price incl. VAT

35

DIODE - 6 AMP 1/4 3/16 TERM

2411035

$104,99 Unit Price incl. VAT

36

FUSE-ATC 30 AMP

4017557

$73,49 Unit Price incl. VAT

37

LABEL-AMP

7193569

Not Available

38

CLIP-EDGE 1-3MM THICKNESS

7082428

$9,44 Unit Price incl. VAT

39

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$2,09 Unit Price incl. VAT

40

CLIP-EDGE 1-3MM THICKNESS

7082401

$13,64 Unit Price incl. VAT

41

LED-PANEL MNT 12V BLUE LE LH

2416169

$104,99 Unit Price incl. VAT

42

LED-PANEL MNT 12V BLUE LE RH

2416170

$120,74 Unit Price incl. VAT

43

FUSE-15AMP MINI BLADE

4010859

$15,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
