1
Engine displacement
925
2
Year
2022
3
Trim
RZR PRO XP 4 ULTIMATE ROCKFORD FOSGATE LE
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, SKID PLATES
by
DRIVE TRAIN, FRONT GEARCASE

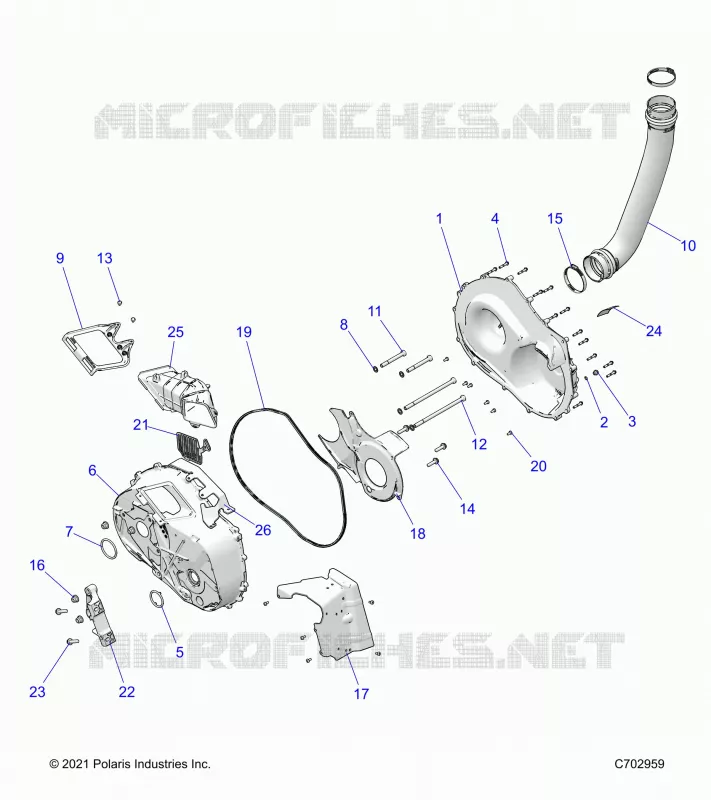

DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
17
18
19
20
20
21
22
23
24
25
26
26
1
ASM-COVER CLUTCH OUTER [INCL. 2-4]
2637740
$335,99 Unit Price incl. VAT
2
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
3
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
4
SCR-HXFL-M6X2.0X38 SPC
7521195
$19,94 Unit Price incl. VAT
5
O-RING-2.25X2.625X.21 NBR BARB
5417662
$15,74 Unit Price incl. VAT
6
COVER-CLUTCH INNER MACH
5143977
$488,24 Unit Price incl. VAT
7
O-RING-0.489X0.629X0.070 EPDM
5415647
$3,14 Unit Price incl. VAT
8
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
9
MOUNT-OUTLET DUCT
5634029
$62,99 Unit Price incl. VAT
10
ASM-DUCT CVT INLET
1241346
$230,99 Unit Price incl. VAT
11
SCR-TXBH-M12X1.75X110 8.8 SPC
7520945
$14,69 Unit Price incl. VAT
12
SCR-TXBH-M12X1.75X245 8.8 SPC
7520946
$25,19 Unit Price incl. VAT
13
BOLT-HXFL-M6X1.0X30 RIE TAPR
7519344
$7,34 Unit Price incl. VAT
13
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
14
SCR-HHSEMS-M10X1.5X40 10.9 SPC
7521294
$10,49 Unit Price incl. VAT
15
CLAMP-HOSE SLOTTED 92-100 DIA
7081969
$19,94 Unit Price incl. VAT
16
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
$9,44 Unit Price incl. VAT
17
BRKT-GUARD CLUTCH COVER
5267038
5273401
$125,99 Unit Price incl. VAT
17
BRKT-GUARD CLUTCH COVER
5272792
5273401
$125,99 Unit Price incl. VAT
18
BAFFLE-INNER COVER
5457973
$68,24 Unit Price incl. VAT
19
SEAL-CLTCH CVR SILICONE FOAM
5526344
$52,49 Unit Price incl. VAT
20
SCREW-M6X1X14 PN/TX TRI-LOB
7518914
$6,29 Unit Price incl. VAT
21
BRKT-SCREEN BELT
5266382
$31,49 Unit Price incl. VAT
22
BRKT-TRANSJOINT MAG MACH
5143634
5144809
$89,24 Unit Price incl. VAT
23
SCR-HXFL-M10X1.5X1.5 8.8 ZY3
7518531
$9,44 Unit Price incl. VAT
24
DECAL-BELT WARNING/CHECK
7177469
Not Available
25
DUCT-CLUTCH OUTLET
5416601
$167,99 Unit Price incl. VAT
26
WELD-CONTAINMENT SHIELD
1028017
$152,24 Unit Price incl. VAT
26
WELD-CONTAINMENT SHIELD [TO 2/21/2022]
1027657
1028017
$152,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
