1
Engine displacement
440
2
Year
1993
3
Trim
EURO 440 SKS - E930560
4
Parts Catalog

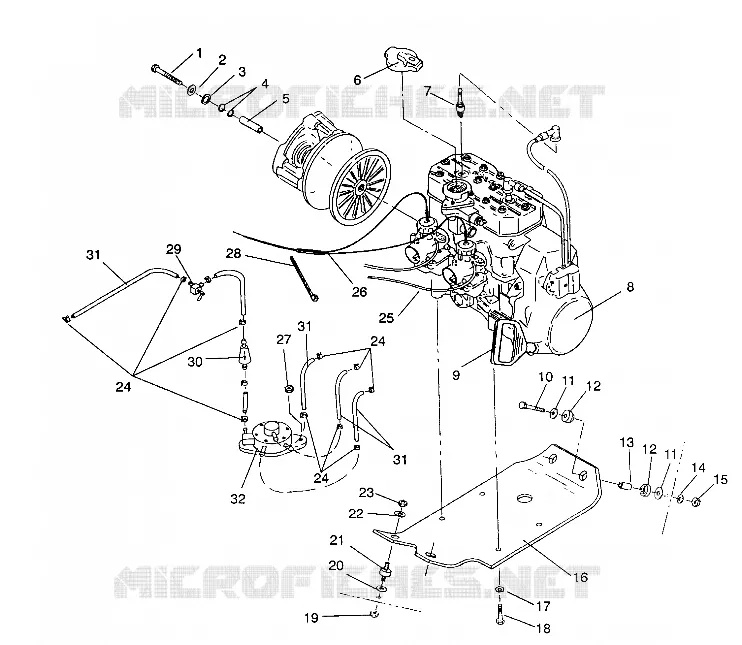

ENGINE MOUNTING 440 / 0930760 AND 440 SKS / 0930560 (4922932293025A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293024A)
by
EXHAUST SYSTEM 440 / 0930760 AND 440 SKS / 0930560 (4922932293026A)
ENGINE MOUNTING 440 / 0930760 AND 440 SKS / 0930560 (4922932293025A)
1
BOLT(10)
7512565
$36,74 Unit Price incl. VAT
2
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
4
O-RING CLUTCH BOLT
5410507
$2,09 Unit Price incl. VAT
5
SPACER CLUTCH BOLT
5020513
$60,89 Unit Price incl. VAT
6
CAP PRESSURE
2511155
Not Available
7
SPARKPLUG RN3C(8)
3070166
$7,34 Unit Price incl. VAT
8
ENG.EC45PL-02 Substituted by 1211497
1211527
Not Available
9
HANDLE-RECOIL
5430520
Not Available
10
SCREW
7512530
$10,49 Unit Price incl. VAT
11
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
12
MOUNT ENGINE
5410390
Not Available
13
SPACER (MTR.MT.)
5332778
Not Available
14
WASHER(10)
7555817
Not Available
15
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
16
PLATE ENG.MT.
5222169
Not Available
17
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
18
BOLT
7512539
$7,34 Unit Price incl. VAT
19
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
20
WASHER
7555721
$2,09 Unit Price incl. VAT
21
MOUNT
3110022
Not Available
22
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
23
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
24
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
25
VENT LINE 1/8 BULK Substituted by 8360009-600
8360009
8360009-600
$83,99 Unit Price incl. VAT
26
CABLE THROTTLE
7080289
$198,96 Unit Price incl. VAT
27
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
28
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
29
VALVE FUEL SHUT-OFF
7052039
Not Available
30
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
31
FUEL LINE 1/4"SAE #30R7
8450040
8450040-600
$136,49 Unit Price incl. VAT
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
