1
Engine displacement
440
2
Year
1993
3
Trim
EURO 440 SKS - E930560
4
Parts Catalog

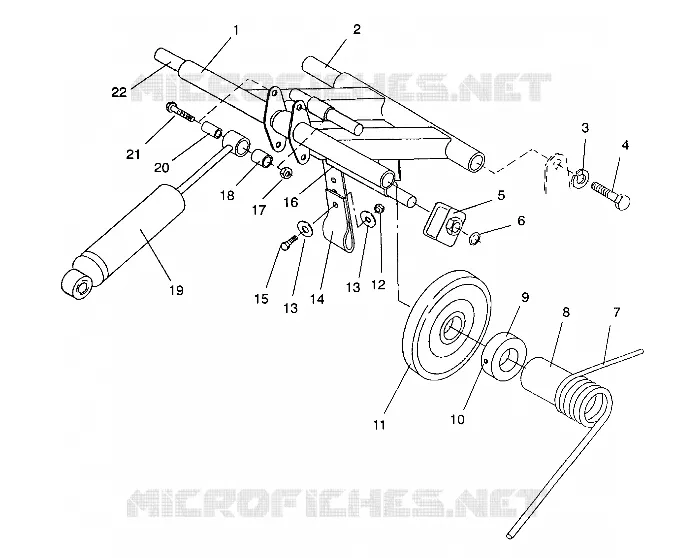

REAR TORQUE ARM 440 / 0930760 AND 440 SKS / 0930560 (4922932293022A)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 440 / 0930760 AND 440 SKS / 0930560 (4922932293021A)
by
OIL TANK AIR BOX 440 / 0930760 AND 440 SKS / 0930560 (4922932293027A)
REAR TORQUE ARM 440 / 0930760 AND 440 SKS / 0930560 (4922932293022A)
1
ARM R.TORQUE BLK.
1540723067
Not Available
2
SHAFT R.TORQUE ARM Substituted by 5020721
5020626
Not Available
3
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
4
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
5
ROLLER SPRING ADJ.
5431168
Not Available
6
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
7
SPRING RH R.SUSP Substituted by 7041274-067
7041274
Not Available
7
SPRING LH R.SUSP. Substituted by 7041278-067
7041278
Not Available
7
SPRING RH BLK R.SUSP. Substituted by 7041338-067
7041274067
Not Available
7
SPRING LH BLK R.SUSP. Substituted by 7041337-067
7041273067
Not Available
8
SPACER SPRING
5431422
Not Available
9
COLLAR-BRG. LOCK
5010155
Not Available
10
SCREW SOCKET SET
7512257
$7,34 Unit Price incl. VAT
11
WHEEL CARRIER
1543023
Not Available
12
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
13
WASHER-.270X1.25X.060 FL-Y
7558221
$4,19 Unit Price incl. VAT
14
STRAP LIMITER
5410587
Not Available
15
BOLT(10)
7512247
Not Available
16
SPACER CAM
5333133
Not Available
17
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
18
BUSHING
5430537
$7,34 Unit Price incl. VAT
19
SHOCK R.TORQUE ARM
7041283
Not Available
19
SHOCK Substituted by 7041737
7041154
Not Available
20
BUSHING R.SHOCK
5333030
Not Available
21
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
22
SHAFT MTG REAR
5020570
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
