1
Engine displacement
650
2
Year
1990
3
Trim
NOR 650 SKS - N900558
4
Parts Catalog
FRONT SUSPENSION AND SKI 650 (4916801680007A)
5
Parts Diagram
Parts Catalog
CONSOLE 650 (4916801680006A)
by
ENGINE MOUNTING 650 UPDATED 2/90 (4916801680017A)

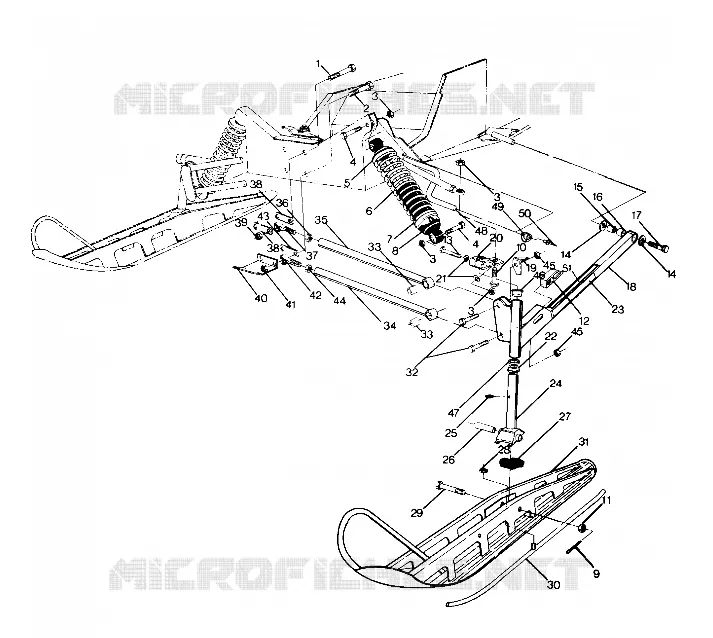

FRONT SUSPENSION AND SKI 650 (4916801680007A)
1
SCREW(10)
7512522
Not Available
2
BOLT(10)
7512656
$11,01 Unit Price incl. VAT
3
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
4
SCREW
7515415
$2,09 Unit Price incl. VAT
5
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
6
SPRING BLACK Substituted by 7041242-067
704124201
7041261-067
$246,74 Unit Price incl. VAT
7
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
8
SHOCK FR.SUSPENSION
7041243
Not Available
9
PIN-3/32X3/4-COTTER-Y
7661205
$1,56 Unit Price incl. VAT
10
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
11
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
12
SLIDE-SWAYBAR
5410384
Not Available
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
Not Available
16
PIVOT-TRAILING ARM
5410382
Not Available
17
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
18
ARM-TRAILING RH Substituted by 1822052-067
1822052
Not Available
18
ARM-TRAILING LH Substituted by 1822053-067
1822053
Not Available
19
STOP STRNG RH BLK. Substituted by 5220238-067
5220238
Not Available
19
STOP STRNG LH BLK. Substituted by 5220237-067
5220237
Not Available
20
ARM STEERING Substituted by 5220326-067
5220326
Not Available
21
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
22
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
23
DECAL IFS LH RED [No Longer Available]
7072551
Not Available
23
DECAL IFS RH RED [No Longer Available]
7072552
Not Available
24
SPINDLE GREASABLE Substituted by 5130919-067
6230055
Not Available
25
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
26
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
27
STOP-RUBBER
5521094
Not Available
28
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
29
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
30
SKAG CARBIDE TRAIL E/S Substituted by 2870693 (650 SKS Only)
1820266
$99,74 Unit Price incl. VAT
31
SKI Substituted by 1820332-067
1820279
Not Available
31
DESC NOT_AVAILABLE (Swedish)
1820278
Not Available
32
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
33
BUSHING
5010127
$12,59 Unit Price incl. VAT
34
ROD RADIUS Substituted by 1822045-067
182204501
Not Available
35
ROD RADIUS Substituted by 1822037-067
182203701
Not Available
36
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
37
ROD END RH
7060126
Not Available
38
STRAP-SPACER
5220178
$2,19 Unit Price incl. VAT
39
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
40
BRACE PAN Substituted by 5223997-067
5223997
Not Available
41
NUT FLEX (10)
7542703
Not Available
42
ROD END
7060127
Not Available
43
STRAP-SPACER BOTTOM
5220227
Not Available
44
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
45
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
46
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
47
BUSHING
7556509
$3,14 Unit Price incl. VAT
48
BAR SWAY (BLACK) Substituted by 5224237-067
522423701
Not Available
49
BUSHING-SWAYBAR
5410383
Not Available
50
RIVET
7621433
$2,09 Unit Price incl. VAT
51
DECAL(25.0##)RED TOP [No Longer Available]
7072569
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
