1
Engine displacement
650
2
Year
1990
3
Trim
NOR 650 SKS - N900558
4
Parts Catalog
WATER PUMP 650 (4916801680028A)
5
Parts Diagram
Parts Catalog
RECOIL STARTER 650 (4916801680027A)
by
MASTER CYLINDER ALL SWEDISH SNOWMOBILES (49187318730007)

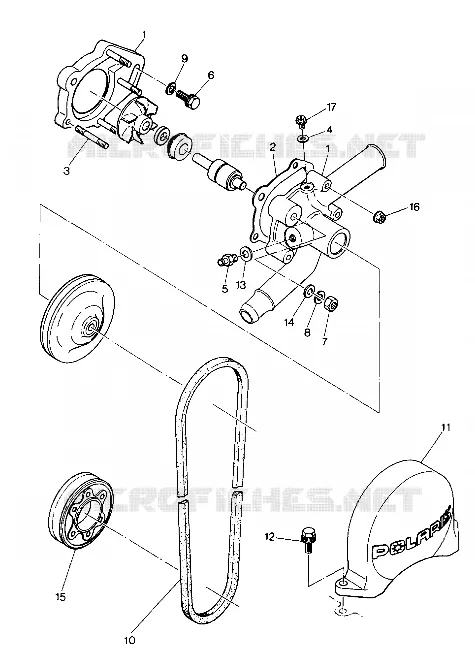

WATER PUMP 650 (4916801680028A)
1
PUMP WATER * (Incl. 2-5 13 16-19)
3083861
Not Available
2
GASKET
3082950
Not Available
3
STUD
3083071
Not Available
4
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
5
CONNECTOR
3080641
Not Available
6
BOLT&WASHER ASM.
3083370
Not Available
8
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
9
WASHER
3082505
Not Available
10
BELT
3082747
$102,47 Unit Price incl. VAT
11
COVER WATER PUMP
3083403
Not Available
12
BOLT&WASHER ASM.
3083862
$2,09 Unit Price incl. VAT
13
GASKET ALUMINUM(10)
3083482
Not Available
14
WASHER(10)
3080142
Not Available
15
PULLEY DRIVE
3083863
Not Available
16
NUT FLANGE
3083856
$4,19 Unit Price incl. VAT
17
PLUG AIR VENT Substituted by 7517266
3083350
Not Available
17
KIT WATER PUMP REPAIR [No Longer Available]
2200335
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
