1
Engine displacement
800
2
Year
2011
3
Trim
SPORTSMAN 800 EFI 6X6 - A11CF76AA
4
Parts Catalog
DRIVE TRAIN, MID GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE OUTPUT SHAFT
by
DUMP BOX

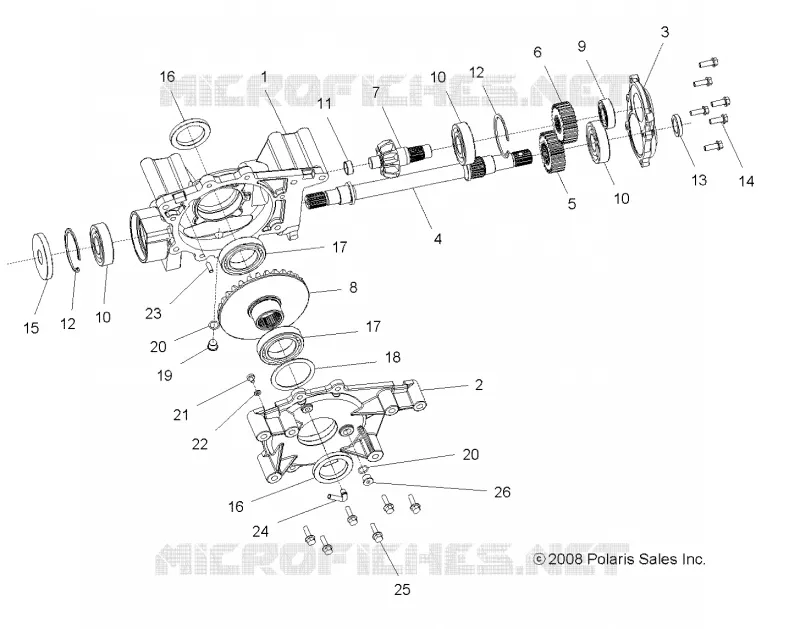

DRIVE TRAIN, MID GEARCASE INTERNALS
-
1
2
3
4
5
6
7
8
9
10
10
10
11
12
12
13
14
15
16
16
17
17
18
19
20
20
21
22
23
24
25
26
1
2
3
4
4
5
6
7
7
8
8
8
8
8
9
10
11
12
-
Asm. Gearcase Mid [Incl. All]
1332715
Not Available
1
Case RH
3234840
Not Available
2
Case LH
3234841
Not Available
3
Cover
3234842
Not Available
4
Shaft Yoke
3234843
$325,49 Unit Price incl. VAT
5
Gear Drive
3234844
$64,04 Unit Price incl. VAT
6
Gear Driven
3234845
$64,04 Unit Price incl. VAT
7
Shaft Pinion
3234846
Not Available
8
Gear 31T
3234663
$246,74 Unit Price incl. VAT
9
Bearing Ball
3234847
Not Available
10
Bearing Ball
3234666
$54,59 Unit Price incl. VAT
11
Bushing
3234665
$57,74 Unit Price incl. VAT
12
Ring Retaining
3234667
Not Available
13
Seal Triple Lip
3234848
$17,84 Unit Price incl. VAT
14
Bolt w/Washer
3234849
Not Available
15
Seal Triple Lip
3234669
$57,74 Unit Price incl. VAT
16
Seal Triple Lip
3234660
$57,74 Unit Price incl. VAT
17
Bearing Ball
3234662
$34,64 Unit Price incl. VAT
18
Shim
3234661
$15,74 Unit Price incl. VAT
19
Plug
3234853
$25,19 Unit Price incl. VAT
20
O-Ring
3234855
$10,49 Unit Price incl. VAT
21
Button Thrust
3234671
$31,49 Unit Price incl. VAT
22
Shim
3234672
$26,24 Unit Price incl. VAT
23
Pin Dowel
3234670
Not Available
24
Tube Vent
3234673
$20,99 Unit Price incl. VAT
25
Bolt Flange
3234850
Not Available
26
SCREW
3234854
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
