1
Engine displacement
325
2
Year
2002
3
Trim
MAGNUM 325 2X4 - A02CB32AB
4
Parts Catalog
WISHBONES
5

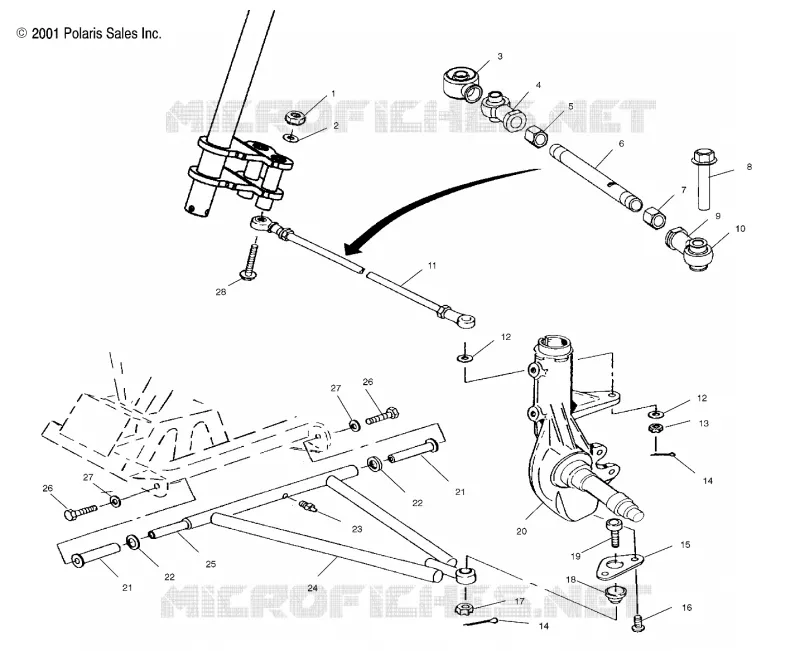

Parts Diagram
Parts Catalog
STEERING POST
by
DRIVE CLUTCH
WISHBONES
1
Nut
7542403
Not Available
2
WASHER
7558403
$9,44 Unit Price incl. VAT
3
Boot Seal Rod End
5411291
5412928
$20,99 Unit Price incl. VAT
4
Rod End
7061034
7061139
$115,49 Unit Price incl. VAT
5
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
6
ROD TIE
5020927
$83,99 Unit Price incl. VAT
7
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
8
BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909 (If built after 8/16/99)
7517674
7517909
$10,49 Unit Price incl. VAT
9
ROD END [INCL. 1]
7061054
7061138
$104,99 Unit Price incl. VAT
10
HOSE TEE/BOTTLE 3/4#
5411909
Not Available
11
TIE ROD 1/2-20X14.0 ASM. (Incl. 3-8)(If built after 8/16/99)
1820806
1822851
$204,74 Unit Price incl. VAT
12
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
13
NUT-M10X1.25-HX-LOCK-Y(10)
7547177
7548155
$1,56 Unit Price incl. VAT
14
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
15
BRACKET BALLJOINT
5240717
Not Available
16
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$2,09 Unit Price incl. VAT
17
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
18
BOOT RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
19
BALL-JOINT 52 DEG ATV (If built after 11/01/00)
7080927
7061306
$52,49 Unit Price incl. VAT
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
BUSHING A ARM LONG
5433066
5436973
$9,44 Unit Price incl. VAT
22
BUSHING A-ARM SPACER(10)
5020677
$19,94 Unit Price incl. VAT
23
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
24
A-FRAME KIT RH (1541455) (Incl. 21-23 26 27)
2201602
2202277-067
$225,74 Unit Price incl. VAT
24
A-FRAME KIT LH (1541454) (Incl. 21-23 26 27)
2201601
2202276-067
$225,74 Unit Price incl. VAT
25
SHAFT A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
26
SCREW
7512492
$2,09 Unit Price incl. VAT
27
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
28
BOLT-3/8-24X4 HX SEM/Y .86D (AB)
7517930
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
