1
Engine displacement
325
2
Year
2002
3
Trim
MAGNUM 325 2X4 - A02CB32AB
4
Parts Catalog
GEARCASE
5

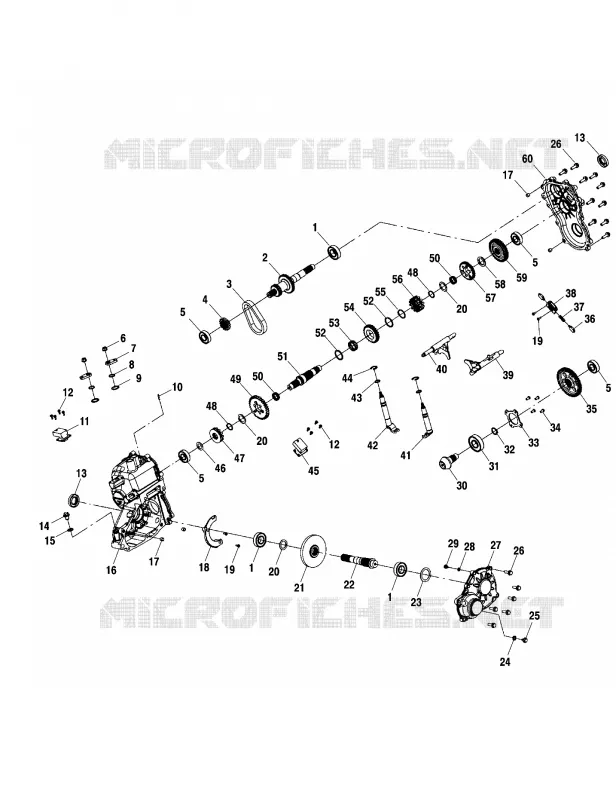

Parts Diagram
Parts Catalog
SWING ARM/REAR GEARCASE MOUNTING
by
GEAR SELECTOR MOUNTING
GEARCASE
-
Asm. Gearcase Main (Incl. All) (Incl. All)
1341364
Not Available
1
BEARING
3233019
$54,59 Unit Price incl. VAT
2
Shaft Input 31T
3233756
Not Available
3
CHAIN SILENT 34P
3233036
Not Available
4
Gear 16T
3233770
$151,19 Unit Price incl. VAT
5
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
6
NUT LOCK HEX FLANGE NYLON 5/16-24
3233961
$5,24 Unit Price incl. VAT
7
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
8
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
9
WASHER
3233040
$17,84 Unit Price incl. VAT
10
VENT
3233037
Not Available
11
Switch 3 Position
3234019
Not Available
12
SCREW TAPPING TORX PH 11902 X.50
3233749
$10,49 Unit Price incl. VAT
13
SEAL TRIPLE LIP
3233788
$57,74 Unit Price incl. VAT
14
PLUG OIL FILL
3233711
Not Available
15
Washer
3233872
$17,84 Unit Price incl. VAT
16
GEARCASE RH
3233902
Not Available
17
PIPE KNOCK
3233529
$16,79 Unit Price incl. VAT
18
DEFLECTOR-OIL
3233712
Not Available
19
Screw
3233747
Not Available
20
WASHER THRUST
3233619
$36,74 Unit Price incl. VAT
21
Asm. Ground Spiral Bevel [Incl. 48]
3234912
Not Available
22
Shaft Output Rear
3233622
Not Available
23
SHIM
3233611
$52,49 Unit Price incl. VAT
24
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
25
Plug Drain
3233777
$52,49 Unit Price incl. VAT
26
SCREW
3233252
$9,44 Unit Price incl. VAT
27
GEARCASE-FRONT COVER
3233713
$117,06 Unit Price incl. VAT
28
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
29
THRUST BUTTON
3233582
$13,64 Unit Price incl. VAT
30
Asm. Ground Spiral Bevel [Incl. 48]
3234912
Not Available
31
Bearing Ball
3233607
$60,89 Unit Price incl. VAT
32
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
33
Cover Bearing
3233609
Not Available
34
Screw
3233608
$9,44 Unit Price incl. VAT
35
Gear Helical 48T
3233709
Not Available
36
PIN INTERLOCK
3233308
Not Available
37
SPRING
3233032
$26,24 Unit Price incl. VAT
38
BRACKET INTERLOCK
3233309
$33,06 Unit Price incl. VAT
39
SHIFT FORK LOW
3233605
Not Available
40
SHIFT FORK
3233602
Not Available
41
Shaft Shift
3233624
Not Available
42
Shaft Shift H/R
3233627
Not Available
43
O-RING
3233548
$52,49 Unit Price incl. VAT
44
Ring Retaining
3233618
Not Available
45
Switch 2 Position
3234001
Not Available
46
Washer
3233628
Not Available
47
Engagement Dog Low
3233732
$330,74 Unit Price incl. VAT
48
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
49
Gear 35T
3233631
$214,19 Unit Price incl. VAT
50
BEARING NEEDLE 25 X 29 X 10
3233103
$54,59 Unit Price incl. VAT
51
SHAFT REVERSE
3233598
Not Available
52
WASHER
3233012
Not Available
53
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
54
Sprocket 24T
3233599
Not Available
55
RING RETAINING
3233029
$10,49 Unit Price incl. VAT
56
Engagement Dog H/R
3234020
Not Available
57
GEAR 30T
3233600
$388,49 Unit Price incl. VAT
58
SPACER
3233613
$5,66 Unit Price incl. VAT
59
Gear Helical 36T
3233708
Not Available
60
GEARCASE LH
3233610
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
