1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog

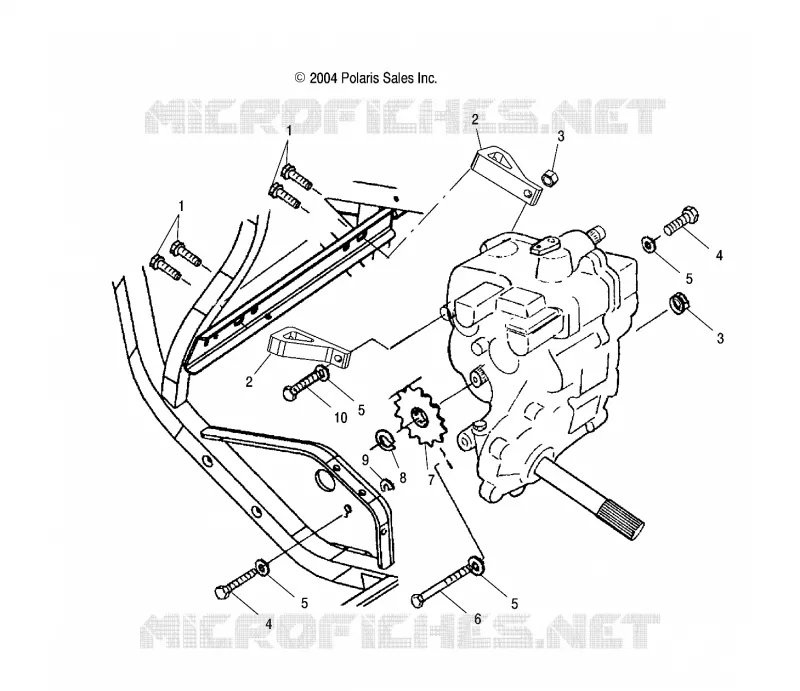

GEARCASE MOUNTING
5
Parts Diagram
Parts Catalog
GEAR SELECTOR
by
CRANKCASE
GEARCASE MOUNTING
1
1
2
2
3
3
4
4
5
5
5
5
6
7
8
9
9
9
10
1
2
3
4
5
6
7
8
9
10
1
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
$10,49 Unit Price incl. VAT
2
Mount Transmission
1014772
$19,83 Unit Price incl. VAT
3
Nut Flange Lock [To 9/01/03]
7547089
$9,44 Unit Price incl. VAT
4
SCREW
7512492
$2,09 Unit Price incl. VAT
5
WASHER
7555806
$1,56 Unit Price incl. VAT
6
SCREW
7517646
$13,64 Unit Price incl. VAT
7
Sprocket 13T
3221041
$83,99 Unit Price incl. VAT
8
RING RETAINING BASIC EXTERNAL
7710434
$7,34 Unit Price incl. VAT
9
Shim [.030 Inch]
5211517
$52,49 Unit Price incl. VAT
9
SHIM CHAINCASE .010
5211065
$52,49 Unit Price incl. VAT
9
SHIM CHAINCASE .020
5210764
$15,74 Unit Price incl. VAT
10
SCREW
7517640
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
