1
Engine displacement
0
2
Year
1994
3
Trim
EURO WIDE TRAK GT - E942061
4
Parts Catalog

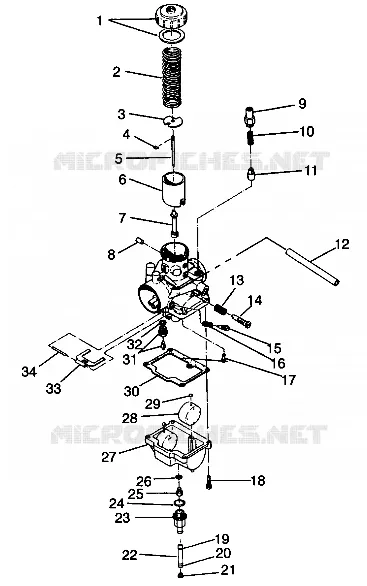

CARBURETOR WIDETRAK LX 0942064 (49250425040034)
5
Parts Diagram
Parts Catalog
WATER PUMP WIDETRAK LX 0942064 (49250425040033)
by
FUEL PUMP WIDETRAK LX 0942064 (49250425040035)
CARBURETOR WIDETRAK LX 0942064 (49250425040034)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130318
$47,24 Unit Price incl. VAT
3
PLATE THROTTLE
3130027
$19,94 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE JET (6EJ26) (6EJ3-3)
3130423
$47,24 Unit Price incl. VAT
6
VALVE THROTTLE 3.0
3130372
$104,99 Unit Price incl. VAT
7
JET NEEDLE (P-6)
3130160
$73,49 Unit Price incl. VAT
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
12
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
13
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
14
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
15
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
16
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
17
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
18
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
19
CLAMP
7080236
$3,14 Unit Price incl. VAT
20
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
21
TRAP-PLUG Substituted by 5431893
5431820
5431893
$26,24 Unit Price incl. VAT
22
FUELLINE 600CM 5/16 ID.
8450057600
Not Available
23
FITTING SEDIMENT Substituted by 3130573
5020476
$18,68 Unit Price incl. VAT
24
O-RING
3130239
Not Available
25
JET MAIN HX.HD#190(10)
3130121
Not Available
26
WASHER
3130014
$3,14 Unit Price incl. VAT
27
CARBURETOR (Incl. 2-32)
3130457
3130711
$818,99 Unit Price incl. VAT
28
ASM. FLOAT
3130430
$73,49 Unit Price incl. VAT
29
CAP
3130237
$8,39 Unit Price incl. VAT
30
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
31
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
32
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
33
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
34
PIN FLOAT Substituted by 3130361
3130235
3130361
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
