1
Engine displacement
0
2
Year
1997
3
Trim
MAGNUM 2X4 - W97AA42A
4
Parts Catalog

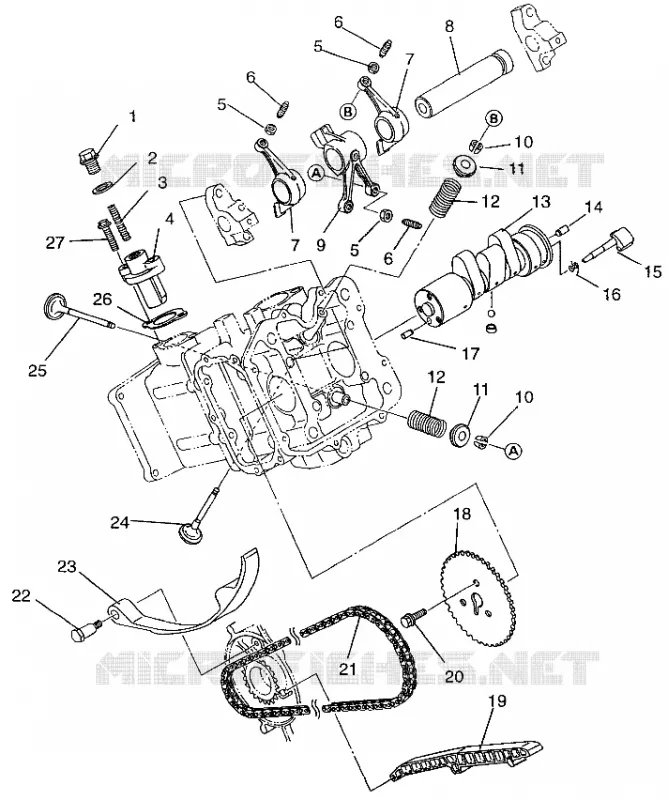

INLET EXHAUST MAGNUM 2X4 W97AA42A (4940704070C011)
5
Parts Diagram
Parts Catalog
CRANKSHAFT AND PISTON MAGNUM 2X4 W97AA42A (4940704070C010)
by
WATER PUMP MAGNUM 2X4 W97AA42A (4940704070C012)
INLET EXHAUST MAGNUM 2X4 W97AA42A (4940704070C011)
1
2
3
4
5
5
5
6
6
6
7
7
8
9
10
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
3
4
4
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
20
21
21
22
22
23
24
25
26
27
1
Plug
3084845
Not Available
2
Gasket Plug
3084920
Not Available
3
SPRING TENSIONER
3084919
Not Available
4
TENSIONER ASM. (Incl. 5-7)
3084918
Not Available
5
NUT
3084912
$7,34 Unit Price incl. VAT
6
Screw Adjusting
3084911
$17,84 Unit Price incl. VAT
7
Asm. Rocker Arm Intake [Incl. 8 9]
3084910
$230,99 Unit Price incl. VAT
8
Shaft Rocker
3084909
$99,74 Unit Price incl. VAT
9
Asm. Rocker Arm Exhaust [Incl. 8 9]
3084913
$262,49 Unit Price incl. VAT
10
Collet Valve
3084908
$9,44 Unit Price incl. VAT
11
RETAINER SPRING Substituted by 3086893
3084907
Not Available
12
Spring Valve
3084906
$52,49 Unit Price incl. VAT
13
CAMSHAFT Substituted by 3086212 (Incl. 17-20)
3084898
$598,49 Unit Price incl. VAT
14
PIN DOWEL Substituted by 3086838
3080103
$13,64 Unit Price incl. VAT
15
Lever Release
3085348
Not Available
16
Spring Return
3085076
Not Available
17
Pin Dowel
3084899
$13,64 Unit Price incl. VAT
18
Sprocket 2
3084914
$141,74 Unit Price incl. VAT
19
Guide Chain
3084916
Not Available
20
BOLT&WASHER ASM.
3081657
$9,44 Unit Price incl. VAT
21
Chain Timing
3084915
$188,99 Unit Price incl. VAT
22
Bolt Pivot
3084924
Not Available
23
Lever
3084917
$173,24 Unit Price incl. VAT
24
Valve Intake
3085349
$125,99 Unit Price incl. VAT
25
VALVE EXHAUST Substituted by 3085412
3084905
$173,24 Unit Price incl. VAT
26
Gasket Tensioner
3084922
Not Available
27
Bolt Flange
3084874
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
