Parts Catalog
REAR BRAKE MAGNUM 2X4 W97AA42A (4940704070C001)
5
Parts Diagram
Parts Catalog
GEARCASE BRAKE MOUNTING MAGNUM 2X4 W97AA42A (4940704070B014)
by
REAR WHEEL DRIVE MAGNUM 2X4 W97AA42A (4940704070C002)

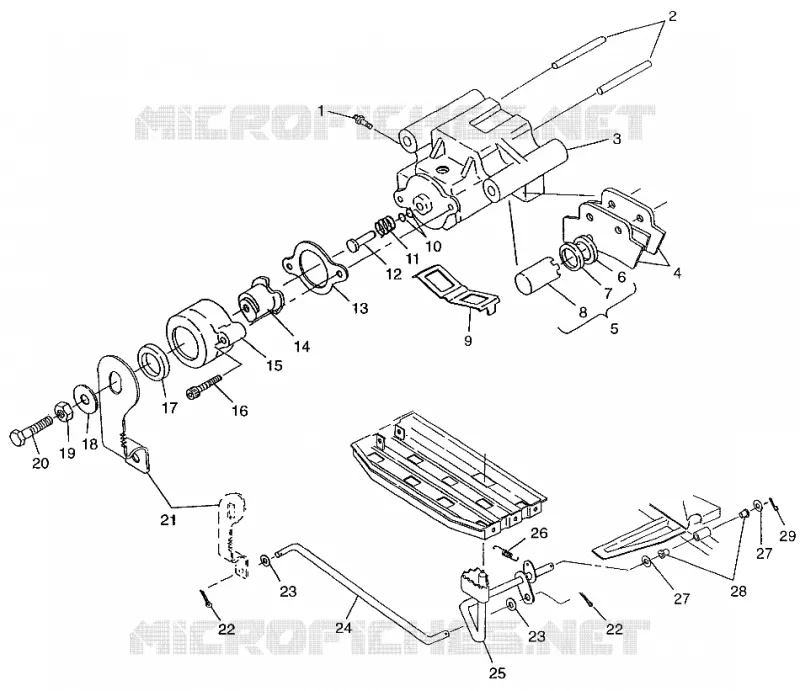

REAR BRAKE MAGNUM 2X4 W97AA42A (4940704070C001)
1
2
3
4
4
4
4
5
6
6
6
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
27
28
29
1
2
3
3
4
4
5
5
6
6
6
6
9
9
10
10
11
12
13
1
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
2
PIN DOWEL(10)
7661820
$20,99 Unit Price incl. VAT
3
CALIPER R.BRAKE MACH
5131272
Not Available
4
KIT R.BRAKEPAD HVY.DUTY
2200899
Not Available
4
KIT BRAKEPAD REAR (Incl. Pins)
2200464
$56,16 Unit Price incl. VAT
5
KIT PISTON&SEAL (Incl. 6 - 8)
2200463
$167,99 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
SPRING ANTI-RATTLE
5240993
Not Available
10
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
11
SPRING BRAKE COMP.
7041219
Not Available
12
PIN BRAKE CALIPER
5020666
Not Available
13
GASKET BRAKE
5830009
Not Available
14
RAMP MOVE.BRAKE(D/C)
5630651
Not Available
15
RAMP STAT.BRAKE(D/C)
5630652
Not Available
16
SCREW(10)
7512173
Not Available
17
SEAL BRAKE
3610026
Not Available
18
Washer Belleville
7555828
Not Available
19
NUT(10)
7542129
$9,44 Unit Price incl. VAT
20
BOLT
7515145
Not Available
21
ARM BRAKE CALIPER
5240624
Not Available
22
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
23
WASHER
7555806
$1,56 Unit Price incl. VAT
24
ROD BRAKE
5224531
$83,25 Unit Price incl. VAT
25
FOOTBRAKE BLK.
1910144067
Not Available
26
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
27
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
28
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
29
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
