1
Engine displacement
500
2
Year
2002
3
Trim
ATV PRO 500 4X4 PPS - C02CD50AC
4
Parts Catalog

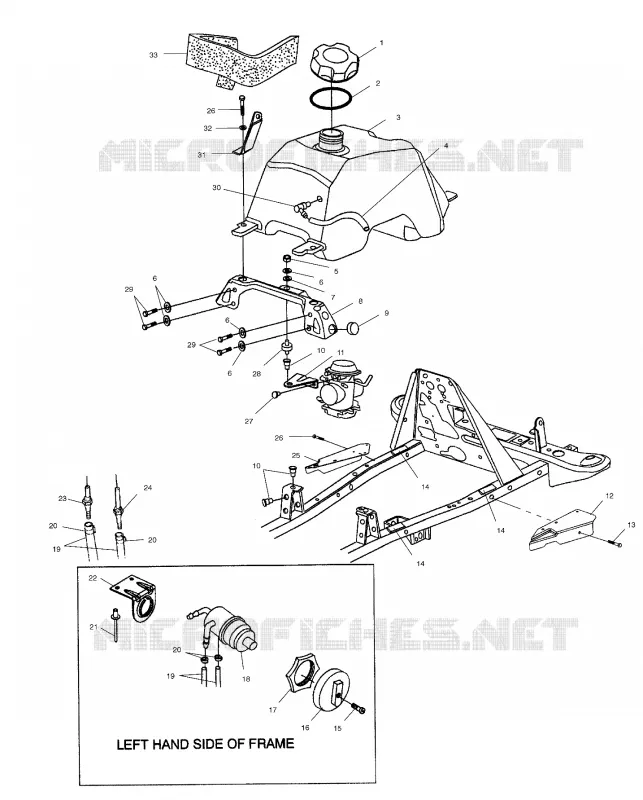

FUEL TANK AND CARBURETOR MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
ENGINE SPEED LIMITER
FUEL TANK AND CARBURETOR MOUNTING
1
2
3
4
5
6
6
6
6
7
8
9
10
10
11
12
13
14
14
14
15
16
17
18
19
19
20
20
20
21
22
23
24
25
26
26
27
28
29
29
30
31
31
32
33
1
2
3
4
5
6
7
8
9
9
10
10
10
10
10
11
12
13
14
15
16
17
18
19
20
1
Cap Gas Tank
5433687
5450389
$36,74 Unit Price incl. VAT
2
Gasket
5812123
$10,49 Unit Price incl. VAT
3
Asm. Fuel Tank [Incl. 23 24 30]
2520143
Not Available
4
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
5
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
6
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
7
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
8
Bracket Carburetor Support
5245672067
$21,20 Unit Price incl. VAT
9
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
10
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
11
Mount Carb
5245673067
$4,29 Unit Price incl. VAT
12
Shield Splash RH
5434762067
Not Available
13
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
14
PAD
5810317
Not Available
15
SCR-4MMX.7X10MM-PH/PN Y LOC
7517505
$3,14 Unit Price incl. VAT
16
KNOB FUEL VALVE (If built before 1/14/00)
5432559
$20,99 Unit Price incl. VAT
17
NUT FUELVALVE ATV (If built before 1/14/00)
5432733
Not Available
18
VALVE 3-WAY (If built before 1/14/00)
7052161
$83,99 Unit Price incl. VAT
19
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
20
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
21
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
22
Bracket Fuel Valve
5240577067
Not Available
23
Fitting Fuel Outlet Main
7052150
$52,49 Unit Price incl. VAT
24
Fitting Fuel Outlet Reserve
7052149
$41,99 Unit Price incl. VAT
25
Shield Splash LH
5245394067
$25,08 Unit Price incl. VAT
26
BOLT
7512277
$9,44 Unit Price incl. VAT
27
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
28
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
29
BOLT LOCK
7512276
$9,44 Unit Price incl. VAT
30
Vent Tank
5431053
$47,24 Unit Price incl. VAT
31
Bracket Mounting Rear RH
5222155
Not Available
31
Bracket Mounting Rear LH
5222154
Not Available
32
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
33
Seal Foam
5811942
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
