1
Engine displacement
500
2
Year
2002
3
Trim
ATV PRO 500 4X4 PPS - C02CD50AC
4
Parts Catalog

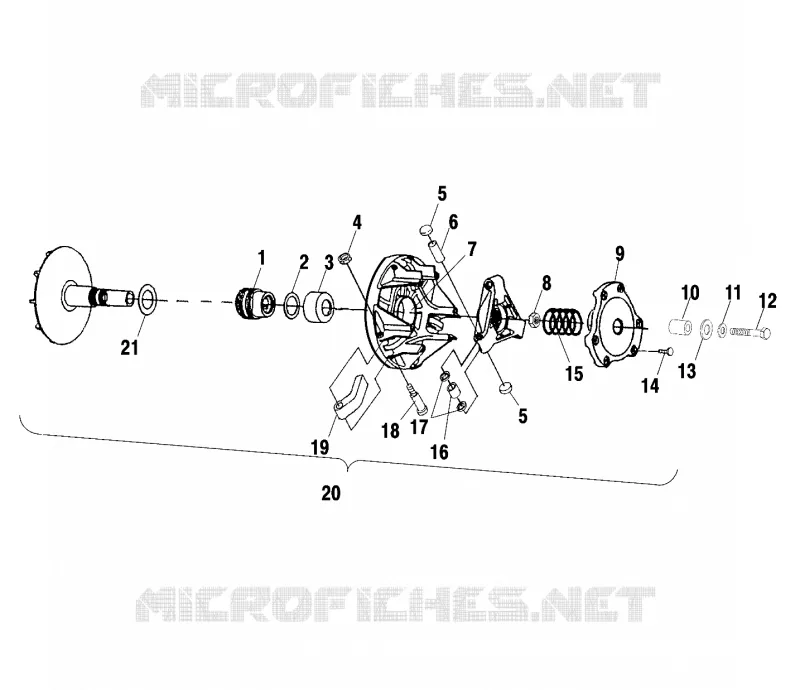

DRIVE CLUTCH
5
Parts Diagram
Parts Catalog
FRONT BRAKE
by
FRONT HOUSING
DRIVE CLUTCH
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
1
Clutch One Way Drive
1520231
$467,24 Unit Price incl. VAT
2
Washer Brass
7556202
$12,59 Unit Price incl. VAT
3
Spacer
5631119
Not Available
4
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
5
Button Clutch
5431936
5439254
$14,69 Unit Price incl. VAT
6
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
7
Bearing
3585712
$54,59 Unit Price incl. VAT
8
Nut Jam
7547130
$41,99 Unit Price incl. VAT
9
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
10
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
11
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
12
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
13
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
14
SCR-1/4-20X1.25 HX/FL GR5
7518062
$9,44 Unit Price incl. VAT
15
SPRING CLUTCH
7041157
$89,24 Unit Price incl. VAT
16
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
17
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
18
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
19
Weight Shift 20-54
5631214
Not Available
20
Asm. Drive Clutch Braking [Incl. All Less 15 19]
1321706
$1 081,49 Unit Price incl. VAT
21
Washer
7556204
$20,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
