1
Engine displacement
0
2
Year
1994
3
Trim
WIDE TRAK LX - 0942064
4
Parts Catalog

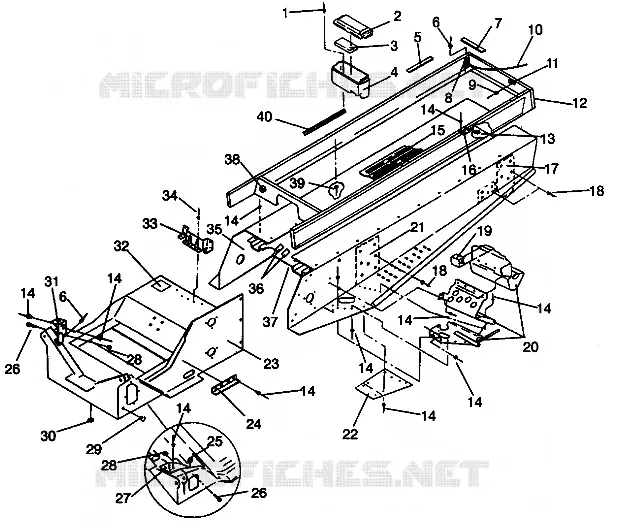

TUNNEL ASSEMBLY WIDETRAK LX 0942064 (49250425040001)
5
Parts Diagram
Parts Catalog
by
HOOD
TUNNEL ASSEMBLY WIDETRAK LX 0942064 (49250425040001)
1
RIVET-POP 5/32(.188-.250)-ST-Z
7621332
$2,09 Unit Price incl. VAT
2
COVER TOOL BOX
5430719
$62,99 Unit Price incl. VAT
3
FOAM - TOOL BOX
5810266
Not Available
4
BOX TOOL
5430716
$20,99 Unit Price incl. VAT
5
SEAL RISER SEAT
5410562
$36,74 Unit Price incl. VAT
6
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
7
SEAL RISER SEAT SHORT
5410563
$11,54 Unit Price incl. VAT
8
BURR RIVET(50) Substituted by 7555904
7555746
7555904
$1,56 Unit Price incl. VAT
9
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
10
CABLE HOOD
7080284
Not Available
11
CLIP HALF [MANUAL START ONLY]
7080393
$6,29 Unit Price incl. VAT
12
RISER SEAT ASM.
1011947067
Not Available
13
GROMMET
5410437
$5,24 Unit Price incl. VAT
14
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
15
PROTECTOR RISER
5410561
$132,29 Unit Price incl. VAT
16
HINGE FLAT(10) (L.H. Side)
7020023
Not Available
17
BRACKET SUSPENSION REAR LH BLACK
1011749067
Not Available
17
BRACKET SUSPENSION REAR RH BLACK
1011750067
Not Available
18
RIVET SEMI-TUBE (50)
7661812
Not Available
19
EXTRUSION CLUTCH GUARD
5521238
$12,59 Unit Price incl. VAT
20
FOOTREST ASM LH
2200311
Not Available
20
FOOTREST ASM RH
2200312
Not Available
21
BRKT FR.SUSP BLK.
5220542067
Not Available
22
PLATE TUNNEL LH Substituted by 5222351-067
5222351
Not Available
22
PLATE TUNNEL RH Substituted by 5222352-067
5222352
Not Available
23
BULKHEAD WIDETRAK Substituted by 1011752-067
1011752
Not Available
24
GUARD
5223789
Not Available
25
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
26
SCREW
7512307
$7,34 Unit Price incl. VAT
27
BRACE RH BLKHD BLK.
5222583067
Not Available
27
BRACE LH BLKHD BLK.
5222582067
Not Available
28
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
29
PLUG-HOLE
7080416
$12,59 Unit Price incl. VAT
30
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
31
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
32
DECAL BRAKE [No Longer Available] (SS)
7072088
Not Available
33
BRACKET GAS TANK BLACK
5221932067
Not Available
34
RIVET(50)
7621301
Not Available
35
TUNNEL (WIDETRAK) [No Longer Available]
1011810
Not Available
36
DECAL TOP TUNNEL STRIP
7073978
Not Available
37
BRKT TUNNEL SPACER [No Longer Available]
5222290
Not Available
38
BUSHING (OPEN/CLOSE)(10)
7080392
Not Available
39
RIVET CH. Q
7621429
$2,09 Unit Price incl. VAT
40
VELCRO 10 IN.
5521235
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
