1
Engine displacement
0
2
Year
1994
3
Trim
WIDE TRAK LX - 0942064
4
Parts Catalog
COOLING SYSTEM WIDETRAK LX 0942064 (49250425040028)
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH ASSEMBLY WIDETRAK LX 0942064 (49250425040023)
by
SHIFT LINKAGE ASSEMBLY WIDETRAK LX 0942064 (49250425040029)

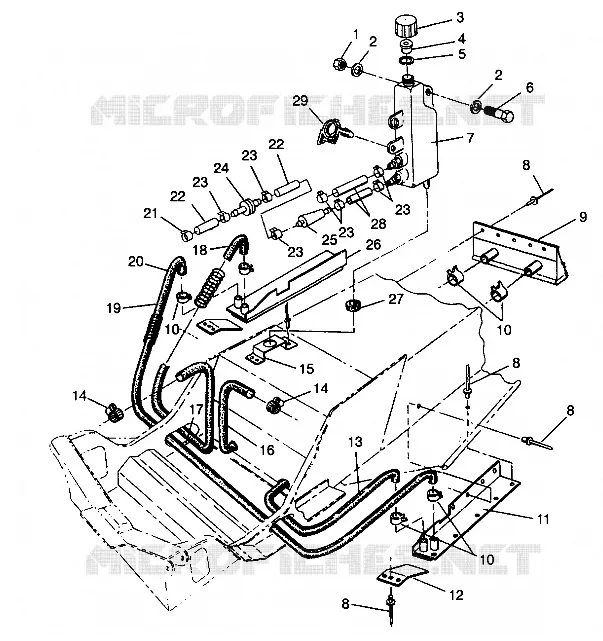

COOLING SYSTEM WIDETRAK LX 0942064 (49250425040028)
1
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
2
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
3
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
4
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
5
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
6
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
7
BOTTLE O#FLOW W/FITTING
5431733
$73,49 Unit Price incl. VAT
8
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
9
EXT CTR.COOLING
2511187
Not Available
10
CLAMP WORM DRIVE
7080547
Not Available
11
EXT. LH COOLING
2511202
Not Available
12
GUARD COOLING EXT
5240101
Not Available
13
HOSE CROSSOVER SHORT
5410558
Not Available
14
CLAMP-HOSE (10) Substituted by 7080475
7080233
Not Available
15
BRACKET
5223985
Not Available
16
HOSE
5410398
Not Available
17
TRIM EDGE
5521131
$83,99 Unit Price incl. VAT
18
HOSE PUMP INLET
5410559
Not Available
19
HOSE CROSSOVER
5410557
Not Available
20
SPRING HOSE RETAINER
7041079
$7,97 Unit Price incl. VAT
21
CLAMP-HOSE(10)
7080134
Not Available
22
TAPE FOIL 1.50 X 7.50
5810831
Not Available
23
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
24
VALVE CHECK
7052038
$20,99 Unit Price incl. VAT
25
FILTER WATER LINE Substituted by 2530024
2530010
Not Available
26
EXT. RH COOLING
2511203
Not Available
27
GROMMET RUBBER
5410021
Not Available
28
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
8450003-1525
$136,49 Unit Price incl. VAT
29
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
