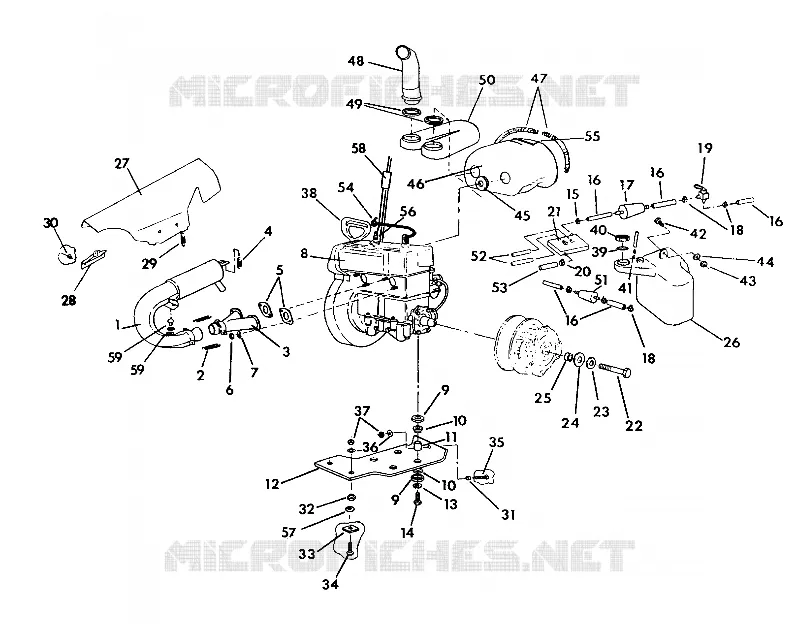

ENGINE MOUNTING INDY LITE (4921332133019A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH INDY LITE/STAR LITE (4921332133018A)
by
CYLINDER INDY LITE (4921332133027A)
ENGINE MOUNTING INDY LITE (4921332133019A)
1
MUFFLER BLK.
1260553029
Not Available
2
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
3
MANIFOLD
1260497029
Not Available
4
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
5
GASKET EXHAUST
3083770
Not Available
6
NUT(10)
3080285
Not Available
7
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
8
ENG EC34-2PM-03 [No Longer Available]
1211448
Not Available
9
CAP
5221901
Not Available
10
DAMPNER-VIB.
5410320
Not Available
11
BUSHING-MOTOR MT.
5010163
Not Available
12
PLATE MOTOR MOUNT Substituted by 5224836
5222292
Not Available
13
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
14
BOLT(10)
7512515
$5,76 Unit Price incl. VAT
15
CLAMP-HOSE(10)
7080134
Not Available
16
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
8450003-1525
$136,49 Unit Price incl. VAT
17
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
18
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
19
VALVE FUEL SHUT-OFF
7052039
Not Available
20
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
21
PUMP FUEL (Incl. 2-5)
3083596
Not Available
22
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
23
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
24
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
25
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
26
TANK OIL
5431225
Not Available
27
SHIELD MUFFLER
5222347
Not Available
28
SUPPORT MUFFLER SHIELD(BLK)
5222534067
Not Available
29
SPRING
7042034
Not Available
30
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
31
BUSHING
5020397
Not Available
32
BUSHING THREADED
5020562
$6,18 Unit Price incl. VAT
33
PLATE SPACER
5211201
$7,97 Unit Price incl. VAT
34
BOLT(10)
7515510
$6,29 Unit Price incl. VAT
35
BOLT(10)
7515503
$9,44 Unit Price incl. VAT
36
Washer Flat
7555761
$4,19 Unit Price incl. VAT
37
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
38
HANDLE-RECOIL
5430520
Not Available
39
GASKET OIL CAP
5810141
$4,19 Unit Price incl. VAT
40
CAP OIL TANK
5430779
$31,49 Unit Price incl. VAT
41
FITTING OUTLET SINGLE
7052042
$13,64 Unit Price incl. VAT
42
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
43
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
44
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
45
BOOT-SILENCER
5410311
Not Available
46
BOX SILENCER
5431212
Not Available
47
SPRING HOLDDOWN
7041244
Not Available
48
DUCT INTAKE UPPER
5431206
Not Available
50
SILENCER INTAKE LOWER
5431203
Not Available
51
FILTER
2530009
$12,59 Unit Price incl. VAT
52
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
$125,99 Unit Price incl. VAT
53
FUEL LINE 1/4"SAE #30R7
8450040
8450040-600
$136,49 Unit Price incl. VAT
54
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
55
DECAL SILENCER [No Longer Available]
7072087
Not Available
56
SPARKPLUG (10)
3070156
$7,34 Unit Price incl. VAT
57
WASHER-.390X1.12X.060 FL-Y
7555823
$7,34 Unit Price incl. VAT
58
CABLE THROTTLE Substituted by 7080557
7080426
Not Available
59
WASHER FLAT
7555726
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
