1
Engine displacement
0
2
Year
1992
3
Trim
lite-deluxe-0923231
4
Parts Catalog
BRAKE INDY LITE/STAR LITE (4921332133040A)
5
Parts Diagram
Parts Catalog
OIL PUMP STAR LITE (4921332133034A)
by
DRIVE TRAIN INDY LITE/STAR LITE (4921332133041A)

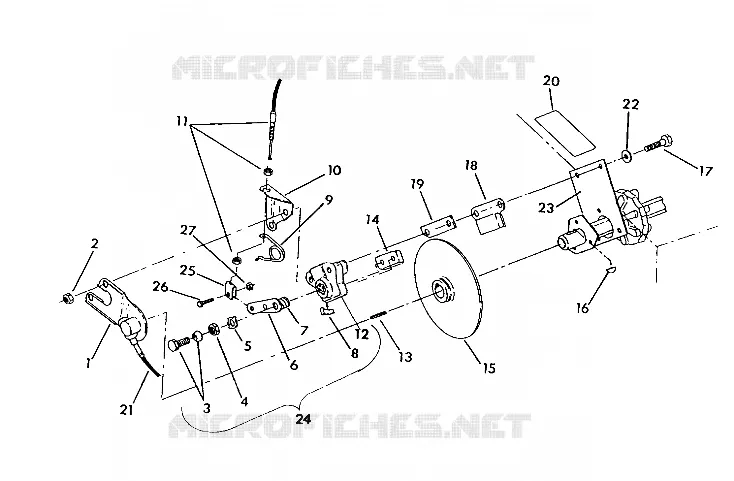

BRAKE INDY LITE/STAR LITE (4921332133040A)
1
DRIVE ANGLE (STARLITE)
3280114
Not Available
2
Nut
7542403
Not Available
3
BOLT & STOP
1930590
Not Available
4
NUT-JAM
1930577
Not Available
5
TAB-JAM NUT LOCK
1930578
Not Available
6
LEVER ACTUATING
1930579
Not Available
7
SHAFT-HELIX
1930580
$46,92 Unit Price incl. VAT
8
RETAINER-BRAKE PAD [No Longer Available]
1930581
Not Available
9
SPRING BRAKE RETURN
7041147
Not Available
10
BRKT BRAKE BLK.
5220211067
Not Available
12
CASTING-CALIPER
1930582
Not Available
13
KEY SPEEDO RH DRIVE
3280117
Not Available
14
PAD BRAKE (THICK)
1930588
Not Available
15
DISC-BRAKE Substituted by 1910088
1910020
Not Available
16
KEY (10)
7727003
Not Available
17
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
18
PUCK STATIONARY
1930586
Not Available
19
SPACER-CALIPER
5223988
Not Available
20
DECAL BRAKE [No Longer Available] (SS)
7072088
Not Available
21
CABLE SPEEDOMETER
3280113
Not Available
22
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
23
BRKT BRAKE BRACE Substituted by 5222350-067
5222350
Not Available
24
CALIPER ASM. (Incl.3-8 12)
1910017
Not Available
25
PIN CLEVIS
7080316
Not Available
26
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
27
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
