1
Engine displacement
0
2
Year
2007
3
Trim
HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL
4
Parts Catalog

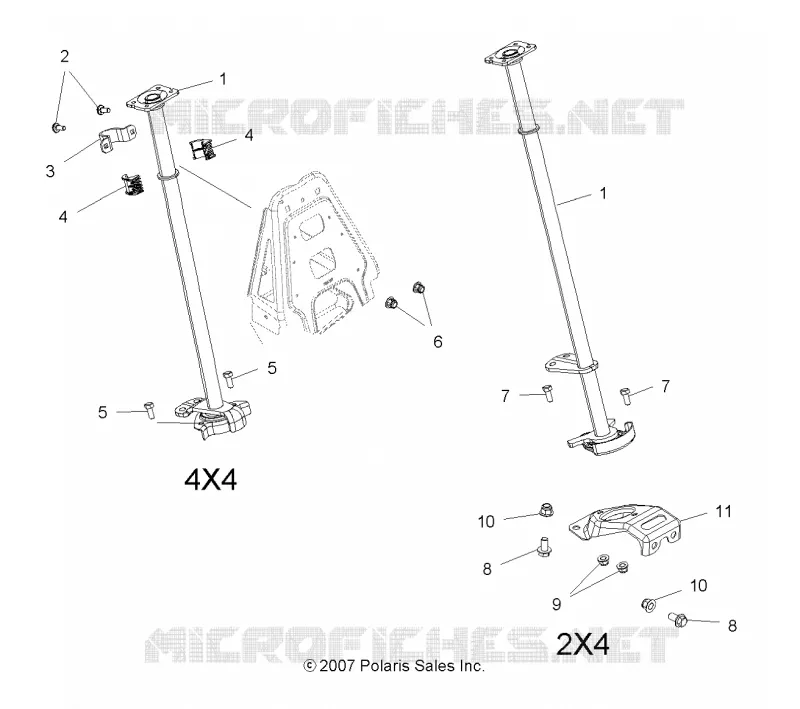

STEERING POST (BUILT 4/02/07 AND AFTER)
5
Parts Diagram
Parts Catalog
ENGINE, CARBURETOR, UPPER
by
ENGINE, CLUTCH
STEERING POST (BUILT 4/02/07 AND AFTER)
1
1
1
1
2
3
4
4
5
5
6
7
7
8
8
6
10
10
11
1
Post Steering 2x4
1015961
Not Available
1
Post Steering 4x4
1015959
Not Available
2
SCR-RHCAR-M8X1.25X20 8.8 ZY3
7518479
$7,34 Unit Price incl. VAT
3
Bracket Bushing Steering Upper
5246732
5257028
$62,99 Unit Price incl. VAT
4
Bushing Steering Upper
5433866
5439731
$12,59 Unit Price incl. VAT
5
Screw Flange
7518471
$7,34 Unit Price incl. VAT
6
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
7
SCR-HXFL-M8X1.25X20 8.8 ZY3
7518702
$7,34 Unit Price incl. VAT
8
SCR-HXFL-M10X1.25X30 8.8 ZY3
7518700
$7,34 Unit Price incl. VAT
9
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
10
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
11
Support-Steering Lower Black
5249419067
$335,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
