1
Engine displacement
0
2
Year
2007
3
Trim
HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL
4
Parts Catalog
REAR WHEEL AND BRAKE DISK/HUBS/BEARING CARRIERS
5
Parts Diagram
Parts Catalog
THROTTLE ASSEMBLY
by
BODYWORK

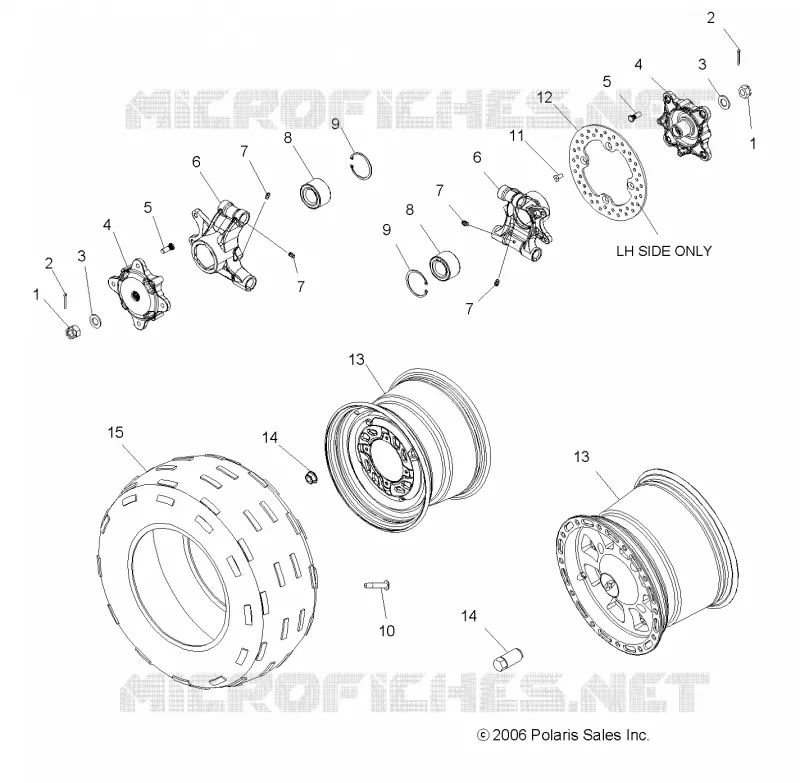

REAR WHEEL AND BRAKE DISK/HUBS/BEARING CARRIERS
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
7
7
8
8
9
9
10
11
12
13
13
13
13
13
13
14
14
14
14
15
15
1
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
1
NUT-M18X1.5 CASTLE ZINC/YELLOW
7547337
$3,66 Unit Price incl. VAT
2
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
3
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
4
Hub Rear
5135546
Not Available
5
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
5
STUD(10)
7515513
$2,09 Unit Price incl. VAT
6
Carrier Bearing Rear LH
5135671
$169,04 Unit Price incl. VAT
7
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
8
Bearing Hubstrut
3514342
3514634
$73,49 Unit Price incl. VAT
9
RING-RETAINING 2.500 INTERNAL
7710507
$4,19 Unit Price incl. VAT
10
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
11
BOLT-M8X1025X20 HSCOK CSNK PCH
7518451
$17,84 Unit Price incl. VAT
12
Disc
5248213
$115,49 Unit Price incl. VAT
13
Rim Rear Black [AC][AD]
1520713067
Not Available
13
Rim Rear Cast Aluminum [AB]
1520899
Not Available
13
Rim Rear Silver
1520713486
Not Available
14
NUT-3/8-24-WHEEL
7547309
$6,81 Unit Price incl. VAT
14
NUT-FLANGE TWO PIECE 3/8-24
7547237
$4,19 Unit Price incl. VAT
15
Tire Rear 22x10-12
5413077
$161,69 Unit Price incl. VAT
15
Tire Rear 23x10R12 ACT [LH27AA/AL]
2876085
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
