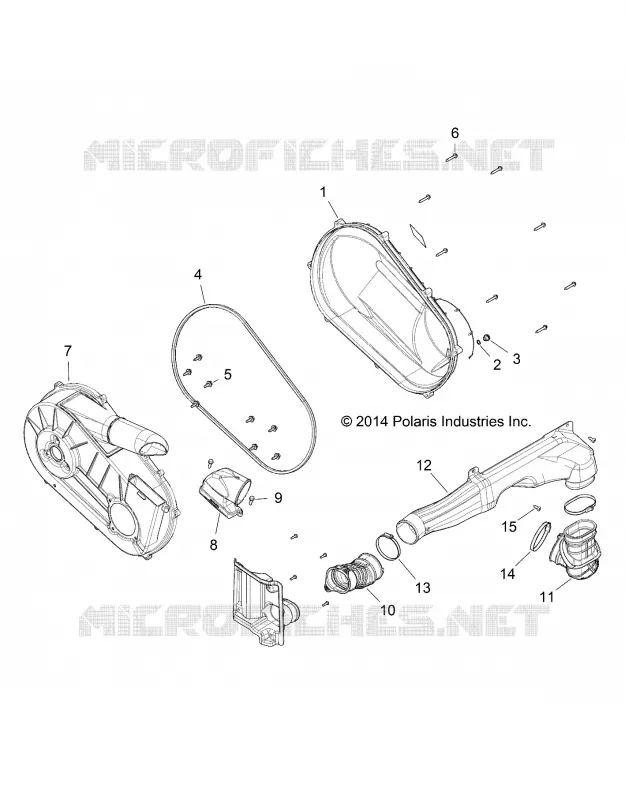

1
ASM. COVER CLUTCH OUTER [INCL. 6 7]
2634179
$346,49 Unit Price incl. VAT
2
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
3
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
4
SEAL COVER CLUTCH OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
5
SCR-TFHFL-M6X1.0X20 S/R ZOD
7519278
$9,44 Unit Price incl. VAT
6
SCREW-NXFL-M6X35 ZOD HILO
7519330
$7,34 Unit Price incl. VAT
7
ASM. COVER CLUTCH INNER [INCL. 8 9]
2635440
$472,49 Unit Price incl. VAT
8
DUCT CLUTCH AIR INLET
5451424
$104,99 Unit Price incl. VAT
9
SCR-#14X1.0 LG HI/LO/TAPER-M
7512098
$3,14 Unit Price incl. VAT
10
ISOLATOR EXHAUST LOWER
5414854
$89,24 Unit Price incl. VAT
11
HOSE CLUTCH AIR INLET
5415168
$99,74 Unit Price incl. VAT
12
DUCT INTAKE CLUTCH
5451066
$120,74 Unit Price incl. VAT
13
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
14
CLAMP-BAND NARROW 70-90MM
7081279
$5,76 Unit Price incl. VAT
15
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
7519045
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
