SUSPENSION, A-ARM AND STRUT MOUNTING FOR RANGER 4X4 400 HO - R10RH45AG/AH/AR FROM 2010

FRONT SUSPENSION STRUT

DRIVE TRAIN, GEAR SELECTOR

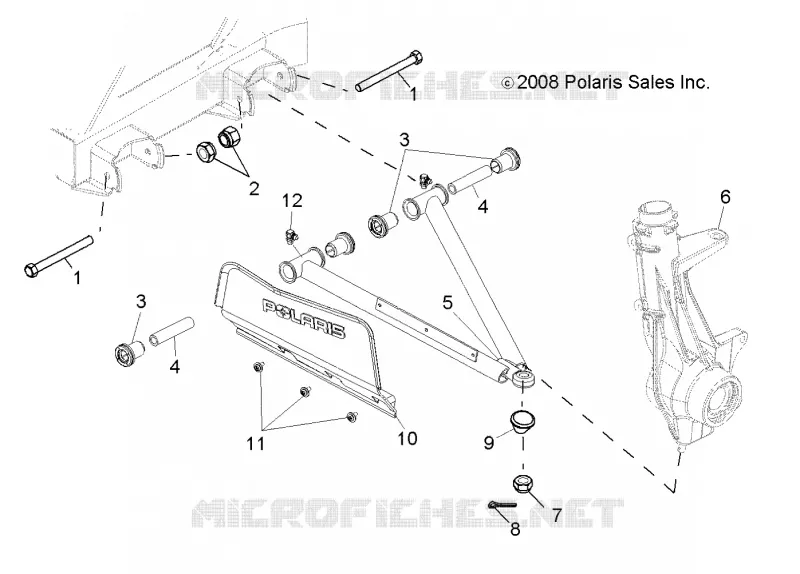

SUSPENSION, A-ARM AND STRUT MOUNTING

1

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$17,84 Unit Price incl. VAT

2

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

3

Bushing A-Arm Short

5434548

$4,19 Unit Price incl. VAT

4

Tube Pivot

5335448

$10,49 Unit Price incl. VAT

5

A-Frame LH Matte# Black [Built 11/20/09 and After]

1542838458

$220,49 Unit Price incl. VAT

5

A-Frame LH Matte# Black [Built 11/19/09 and Before]

1542125458

$220,49 Unit Price incl. VAT

5

A-Frame RH Matte# Black [Built 11/19/09 and Before]

1542126458

$220,49 Unit Price incl. VAT

5

A-Frame RH Matte# Black [Built 11/20/09 and After]

1542839458

$220,49 Unit Price incl. VAT

6

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

7

NUT-3/8-24 HX CA GR5-Y

7542438

$3,14 Unit Price incl. VAT

8

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

9

BOOT-BALLJOINT GREASELESS STRT

5412658

$9,44 Unit Price incl. VAT

10

Shield CV Front RH Black

5435029070

$47,24 Unit Price incl. VAT

10

Shield CV Front LH Black

5435028070

$47,24 Unit Price incl. VAT

11

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

12

FITTING ZERK 90 DEGREE

7080510

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
