BRAKE LINES, REAR FOR SPORTSMAN TOURING 570 PREMIUM TRACTOR FROM 2022

BRAKE LINES, FRONT

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

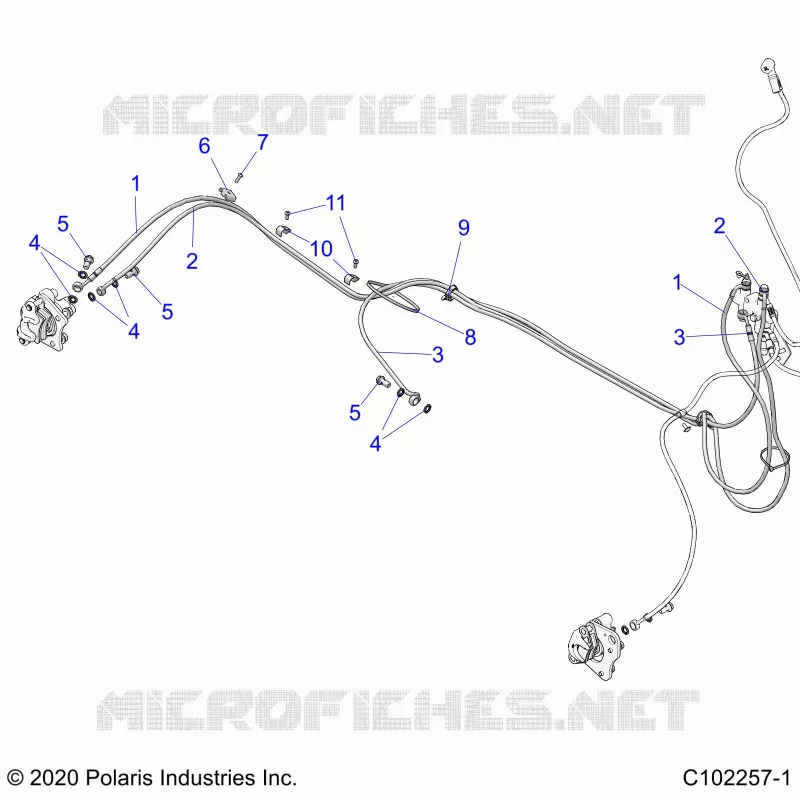

BRAKE LINES, REAR

1

LINE-BRK RR 87.5 70B 45B 325Ã¯Â¿Â½G

1913098

Not Available

2

LINE-BRK RRAU 87.3 70B 70B 225

1913099

Not Available

3

LINE-BRAKE FTDB62 45B 45B 315Ã¯Â¿Â½

1912196

Not Available

4

SEAL-STAT-0-3/8 70EP

5413212

$9,44 Unit Price incl. VAT

5

BOLT-BANJO 10MMX1.00-6G

1910499

$10,49 Unit Price incl. VAT

6

CLIP-RETAINING DUAL .250# LINE

7670126

$9,44 Unit Price incl. VAT

7

SCR-#10-24X5/8PN/TR-RDTORX-Y

7517756

$2,09 Unit Price incl. VAT

8

CABLE-TIE 10-102MM WEATH.-RES.

7080761

$5,24 Unit Price incl. VAT

9

Clip Rosebud

4020149

$12,59 Unit Price incl. VAT

10

CLIP-HALF-Y

7081940

$7,34 Unit Price incl. VAT

11

SCR-#10-24X1/2PH/TORX-TRIRD-Y

7512024

$9,44 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
