STEERING, IDLERS AND LINKS FOR SPORTSMAN TOURING 570 PREMIUM TRACTOR FROM 2022

STEERING, HANDLEBAR

SUSPENSION, A-ARM MOUNTING

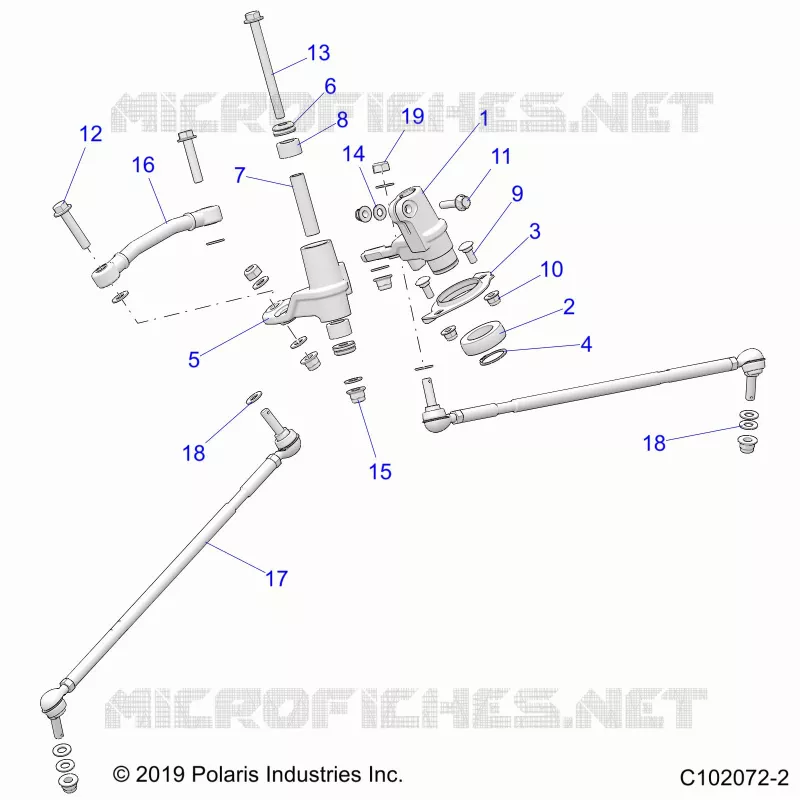

STEERING, IDLERS AND LINKS

1

ASM-IDLER STEERING LH [INCL. 1-4]

1824742

$283,49 Unit Price incl. VAT

1

IDLER-STEERING LH MACH

5142900

$220,49 Unit Price incl. VAT

2

BEARING-1.25X52XM15 SPH

3514792

$27,29 Unit Price incl. VAT

3

FLANGETTE-52 DEGREE

5266621

$73,49 Unit Price incl. VAT

4

RING-RET 1.188X1.098X.050

7710606

$4,19 Unit Price incl. VAT

5

ASM-IDLER STEERING RH [INCL. 5-8]

1824743

$194,24 Unit Price incl. VAT

5

IDLER-STEERING RH MACH

5142901

$220,49 Unit Price incl. VAT

6

ASM-PIVOT CAP SEALED M10

1543611

$10,49 Unit Price incl. VAT

7

SHAFT-PIVOT SHORT M10

5139990

$10,49 Unit Price incl. VAT

8

BUSHING-STANDARD SUSP M10

5452233

$5,24 Unit Price incl. VAT

9

SCR-RHCAR-M8X1.25X20 8.8 ZY3

7518479

$7,34 Unit Price incl. VAT

10

NUT-M8X1.25 HXFLG NYLON INS

7547317

$5,24 Unit Price incl. VAT

11

SCR-HXFL-M8X1.25X35 8.8 ZOD

7519052

$3,14 Unit Price incl. VAT

12

BOLT-M10X1.25X50 HXFLG-OLIVE D

7518559

$10,49 Unit Price incl. VAT

13

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$25,19 Unit Price incl. VAT

14

WASHER FLAT

7556524

$1,56 Unit Price incl. VAT

15

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

16

ASM-DRAG LINK

1523255

$104,99 Unit Price incl. VAT

17

ASM. TIE ROD

1824206

$194,24 Unit Price incl. VAT

18

WASHER

7556153

$3,66 Unit Price incl. VAT

19

NUT-M10X1.25 NYLOC-OLIVE D

7547362

$7,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
