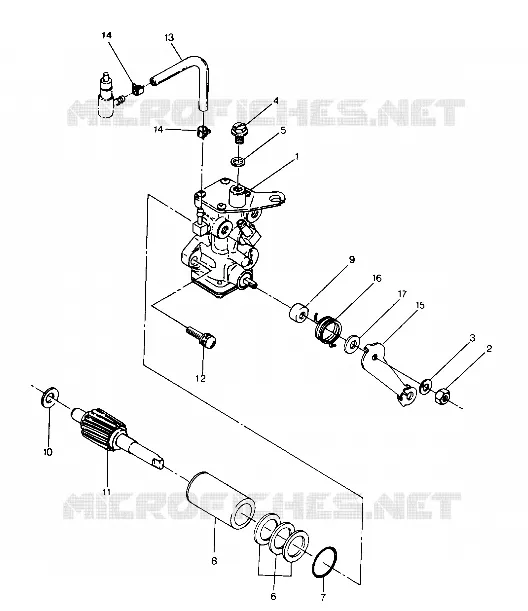

OIL PUMP ASSEMBLY TRAIL BLAZER (4919761976035A) FOR TRAIL BLAZER

RIGHT GEARCASE BRAKE MOUNTING TRAIL BLAZER (4919761976029A)

CARBURETOR TRAIL BLAZER (4919761976036A)

OIL PUMP ASM. Substituted by 3085542 (F1B) (Incl. 4 5 7 13-18)

3083806

Not Available

HARNESS HEADLIGHT

2460428

Not Available

COVER SOCKET H/L.

4032066

Not Available

NUT

3083120

$6,29 Unit Price incl. VAT

BULB H/L

4030028

Not Available

WASHER SPRING

3083121

1205792

$614,24 Unit Price incl. VAT

RETAINER H/L BULB

4032063

Not Available

SCREW-AIR VENT

3083125

Not Available

HEADLIGHT ASM. (Incl. 20 22)

4032038

Not Available

PACKING(10)

3083126

$7,34 Unit Price incl. VAT

SPACER 3 .6MM

3083673

5141621

$8,39 Unit Price incl. VAT

SPACER 2 .3MM

3083672

5141620

$6,29 Unit Price incl. VAT

SPRING-ADJ

4032002

Not Available

SPACER 1 .15MM

3083671

5141619

$6,29 Unit Price incl. VAT

O RING

3083127

Not Available

SPRING ADJ. (Incl. Bulb Lens & Gasket)

4032041

Not Available

SCREW(10)

7512017

$9,44 Unit Price incl. VAT

BUSHING(OIL PUMP)

3083353

$54,59 Unit Price incl. VAT

CAP

3083758

$9,23 Unit Price incl. VAT

DECAL CERTIF. ATV Substituted by 7075909

7073464

Not Available

COVER (P.RED) H/L.

5431202136

Not Available

SPACER *

3083428

$3,14 Unit Price incl. VAT

GEAR SMALL

3083429

Not Available

SCREW ADJ.(10)

4032003

$9,44 Unit Price incl. VAT

DOOR ACCESS(P.RED)

5431201136

Not Available

SCREW&WASHER (10)

3083783

$4,19 Unit Price incl. VAT

FASTENER 1/4 TURN(10)

7670064

$11,01 Unit Price incl. VAT

PIPE RUBBER Substituted by 3083446

3083139

Not Available

CLAMP HOSE

3083141

$2,09 Unit Price incl. VAT

RING SPLIT RETAINER(10)

7670065

$3,66 Unit Price incl. VAT

RECEPTACLE CLIP-ON(10)

7670066

$6,81 Unit Price incl. VAT

LEVER CONTROL

3083935

Not Available

SPRING-RETURN

3083123

Not Available

LOGO #40 YEARS#

7074695

Not Available

COLLAR CAMSHAFT

3083757

$7,86 Unit Price incl. VAT

SCREW ADJUST (ATV)(10)

4032042

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN

2200188

$52,49 Unit Price incl. VAT

CABLE CHOKE

7080371

$178,49 Unit Price incl. VAT

Screw

7511862

Not Available

SWITCH IGNITION (See Footnote Below)

4110140

$257,24 Unit Price incl. VAT

BRKT IGN. PANEL

5220965067

Not Available

STRIP SOCKET

4032037

$43,56 Unit Price incl. VAT

BULB

4030042

4080872

$15,74 Unit Price incl. VAT

PANEL IGNITION

5430995

Not Available

LENS ASM PILOT LIGHT

2652049

Not Available

DECAL PANEL [No Longer Available]

7072528

Not Available

Nut Choke Slide

7080229

$36,74 Unit Price incl. VAT

COVER KEY Substituted by 5433534

5431964

5465307

$26,24 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
