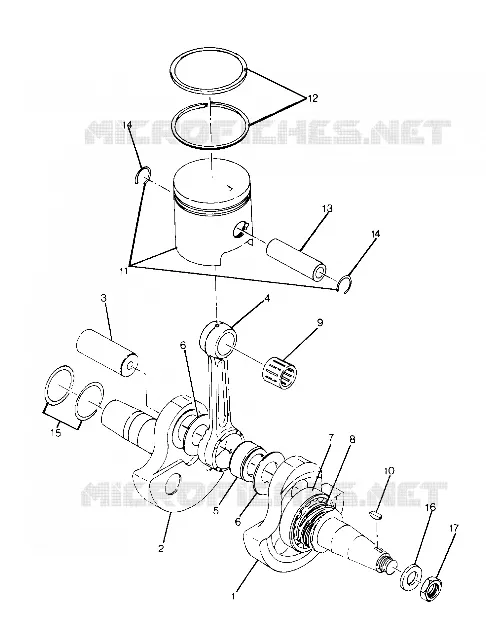

CRANKSHAFT AND PISTON ASSEMBLY TRAIL BLAZER (4919761976034A)

-

CRANKSHAFT Substituted by 3084582 (Incl. 1-8)

3083921

Not Available

1

CRANKSHAFT #1

3083899

$423,14 Unit Price incl. VAT

2

CRANKSHAFT #2

3083802

Not Available

3

CRANK PIN PTO

3082796

Not Available

4

ROD CONNECTING

3082790

Not Available

5

BEARING LGE.END

3083803

Not Available

6

SPACER

3083804

$36,74 Unit Price incl. VAT

7

BEARING BALL

3083805

Not Available

8

GEAR CRANKSHAFT Substituted by 3083745

3083414

Not Available

9

BEARING SMALL END

3083626

Not Available

10

KEY Substituted by 3081543

3080130

$26,24 Unit Price incl. VAT

11

PISTON .010 O/S (.010 Over) (Incl. 16)

3083943

Not Available

11

PISTON .020 O/S (.020 Over) (Incl. 16)

3083944

Not Available

11

PISTON * (Standard) (Incl. 16)

3083942

Not Available

11

PISTON (1.0 MM O/S) (1.00mm/.040# O/S)(Incl. 15)

3083972

Not Available

12

RING PISTON(O/S 1.0MM) (.040 Oversize)

3083974

$54,59 Unit Price incl. VAT

12

RING .020 Substituted by 3083717

3083680

$40,94 Unit Price incl. VAT

12

RING .010 O/S (0.10 Oversize)

3083678

Not Available

12

RING PISTON

3083546

Not Available

13

PIN PISTON

3083838

$356,99 Unit Price incl. VAT

14

CLIP PISTON PIN (10)

3083839

$7,34 Unit Price incl. VAT

15

SPACER #1

3083629

Not Available

15

SPACER #3

3083630

Not Available

16

WASHER Substituted by 3086767

3083904

Not Available

17

LOCKNUT

3083905

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
