1
Engine displacement
800
2
Year
2003
3
Trim
800 RMK 159 F/O BUILT AFTER 1/01/02
4
Parts Catalog
CHAINCASE (REVERSE MODELS)
5

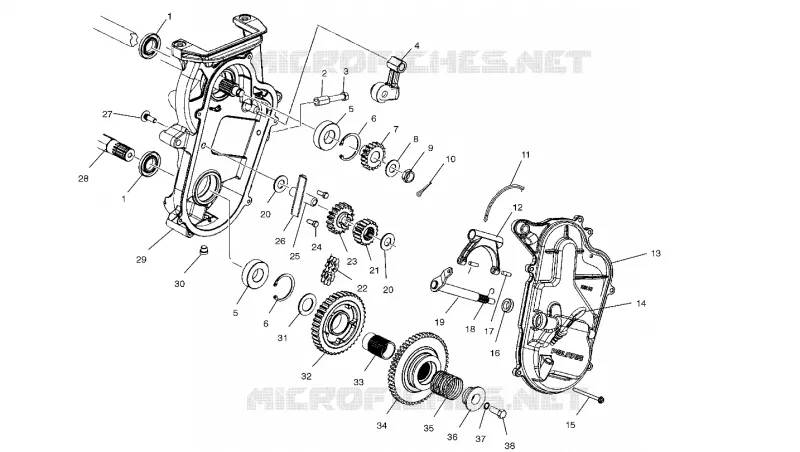

Parts Diagram
Parts Catalog
CHAINCASE
by
DRIVE CLUTCH (ELECTRIC START MODELS)
CHAINCASE (REVERSE MODELS)
1
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
2
NUT-CHAIN ADJUSTER 3/8-16
5132237
$17,84 Unit Price incl. VAT
3
SCREW(10)
7512470
Not Available
4
WHEEL C/C IDLER
5630123
Not Available
4
BEARING
3553002
$20,99 Unit Price incl. VAT
4
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
4
TIGHTENER CHAINCASE (Includes the following)
1332213
Not Available
4
BLOCK TIGHTENER W/ANGLE
5630958
Not Available
4
PIN CHAIN TIGHTENER
7662210
Not Available
5
BEARING BALL
3514309
3515910
$30,23 Unit Price incl. VAT
6
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
7
SPROCKET-19T 3/4W 15 SPL HV PM [W/2.0IN. SERIES 4 TRACK]
3221095
$68,24 Unit Price incl. VAT
7
SPROCKET 21T 3/4W
3221097
$73,49 Unit Price incl. VAT
8
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
9
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
10
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
11
GASKET O-RING CHAINCASE
5411497
$36,74 Unit Price incl. VAT
12
KIT SHIFT FORK/SHAFT (Incl. 29 35)
2200363
Not Available
12
FORK SHIFT
5130805
Not Available
13
Cover Chaincase
5133431
Not Available
14
ASM-DIPSTICK W/MAGNET EDGE
1332250
$73,49 Unit Price incl. VAT
15
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
16
SEAL OIL
3610029
$15,74 Unit Price incl. VAT
17
PIN SHIFT FORK(10)
7661826
$12,59 Unit Price incl. VAT
18
RING RETAINER(10)
7710415
$7,34 Unit Price incl. VAT
19
Shaft Shift
1341388067
Not Available
20
WASHER THRUST(10)
7555877
$14,69 Unit Price incl. VAT
21
BEARING NEEDLE
3554508
Not Available
21
GEAR SPUR PINION
1341075
$241,49 Unit Price incl. VAT
22
CHAIN 72P 3/4W
3221110
$262,49 Unit Price incl. VAT
22
CHAIN 74P 3/4W
3221109
$262,49 Unit Price incl. VAT
23
BEARING NEEDLE
3554508
Not Available
23
SPROCKET PINION
1341241
Not Available
24
SCREW(10) (Chain Retention Bracket)
7512019
$7,34 Unit Price incl. VAT
25
SHAFT PINION W/WRENCH FLATS
5131770
Not Available
26
BRACKET-CHAIN RETENTION 7.05
5243162
Not Available
27
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
CHAINCASE-7.92 CD ALUM
5132773
Not Available
30
PLUG
7052115
$10,49 Unit Price incl. VAT
31
WASHER REVERSE(10)
7555871
$10,49 Unit Price incl. VAT
32
SPKT.ASM 41T REV 3/4W PM (3/4W) w/Bearing
1341228
Not Available
32
SPKT.ASM 39T 3/4W REV HVPM
1341243
Not Available
33
COUPLER DRIVE
5130720
Not Available
34
ASM REVERSE GEAR
1341410
$887,24 Unit Price incl. VAT
35
SPRING-COMPRESSION
7041887
$68,24 Unit Price incl. VAT
36
RETAINER DRIVE COUPLER
5130727
Not Available
37
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
38
SCREW(10)
7517581
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
