1
Engine displacement
800
2
Year
2003
3
Trim
800 RMK 159 F/O BUILT AFTER 1/01/02
4
Parts Catalog

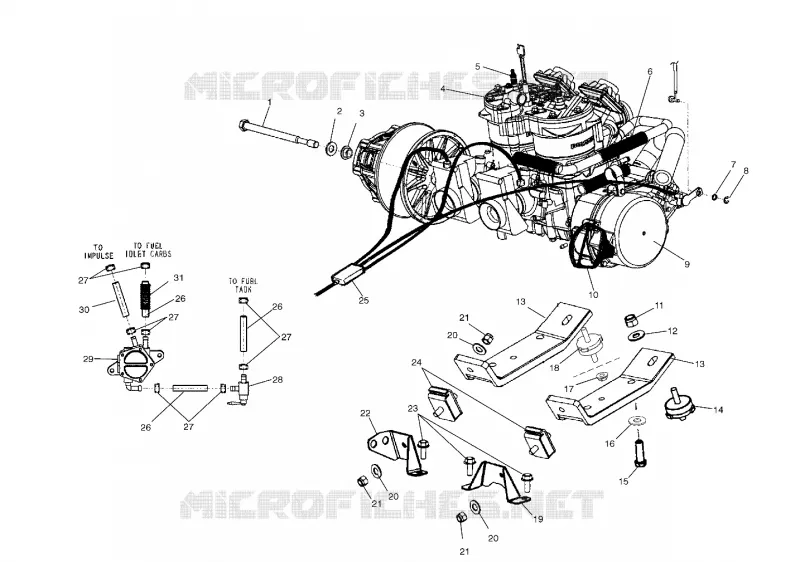

ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH (MANUAL START MODELS)
by
CRANKCASE
ENGINE MOUNTING
1
SCREW M14X1.5X215
7517501
7518412
$52,49 Unit Price incl. VAT
2
WASHER-BLVL .567X1.125X.118-Y
7556003
$11,54 Unit Price incl. VAT
3
WASHER-CLUTCH RET M14
5132441
$41,99 Unit Price incl. VAT
3
WASHER CLUTCH RET.
5131872
5132441
$41,99 Unit Price incl. VAT
4
Kit Short Block S707003 [700] NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is requi
2202234
Not Available
4
Kit Short Block S807003 [800] NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is requi
2202335
Not Available
5
SP.PLUG CHAMPION RN57Y CC (8)
3070190
$7,34 Unit Price incl. VAT
6
CONDUIT FLEX(.75#ID) Substituted by 5521398-96
552139813
Not Available
7
WASHER(10)
7555944
Not Available
8
RING-E RET.(10)
7710427
Not Available
9
FOIL-TAPE 5.5#DIA
5811485
Not Available
10
Recoil Handle
5431499070
$26,24 Unit Price incl. VAT
11
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
12
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
13
Strap Engine Mount LH
5245462
$68,24 Unit Price incl. VAT
13
Strap Engine Mount RH
5245475
$66,66 Unit Price incl. VAT
14
MOUNT-ENGINE 3/8-16 50 DUR
3021290
Not Available
15
BOLT
7512539
$7,34 Unit Price incl. VAT
16
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
17
NUT-FLANGED 3/8-16 NYLON
7547180
$4,19 Unit Price incl. VAT
18
MOUNT-ENGINE 3/8-16
3021220
Not Available
19
BRKT-ENGINE MOUNT RH FORMED
5245044
Not Available
20
WASHER
7555806
$1,56 Unit Price incl. VAT
21
NUT-3/8-16 FLEXLOCK THIN-Y
7547008
$11,54 Unit Price incl. VAT
22
WELD-ENG MOUNT BRKT LH
1013397
Not Available
23
SCREW
7517854
$10,49 Unit Price incl. VAT
24
MOUNT-ENGINE 3/8-16 RECT
3021206
$115,49 Unit Price incl. VAT
25
Cable Throttle
7081051
Not Available
26
FUEL LINE ETHER RED 5/16# Substituted by 8350017-160
8350017600
Not Available
27
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
28
VLV FUEL SHUTOFF 5/16 ID
7052268
Not Available
29
Pump Fuel
2520275
$188,99 Unit Price incl. VAT
30
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
31
DESC NOT_AVAILABLE
836005215
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
