1
Engine displacement
440
2
Year
1996
3
Trim
440 L/C - 0962760
4
Parts Catalog

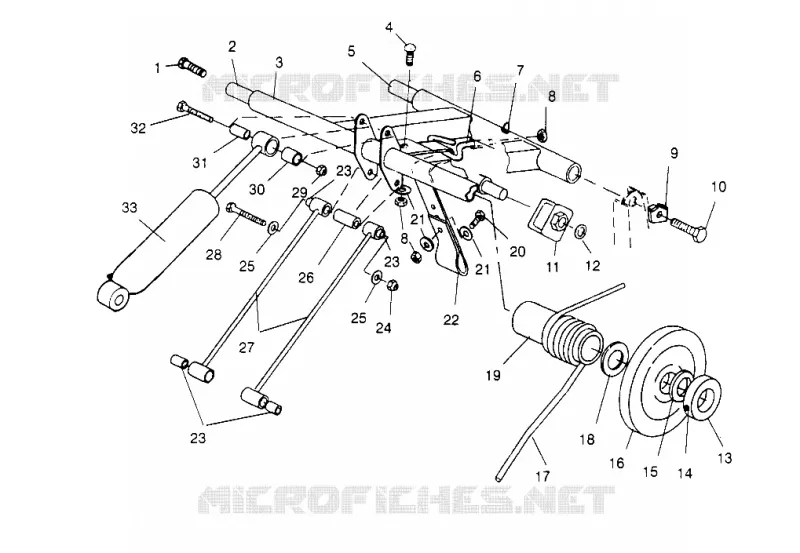

REAR TORQUE ARM 440 0962760 (4931743174B012)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 440 0962760 (4931743174B011)
by
TOOL KIT 440 0962760 (4931743174C004)
REAR TORQUE ARM 440 0962760 (4931743174B012)
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
20
21
21
22
23
23
23
24
25
25
26
27
28
29
30
31
32
33
1
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
2
SHAFT R.TORQUE UPPER
5020845
$115,49 Unit Price incl. VAT
3
ARM R.TORQUE BLK Substituted by 2200914 (X-10 Blk)
1541024067
Not Available
4
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
5
SHAFT LOW RR TORQUE
5020843
Not Available
6
BOLT EYE
7010050
Not Available
7
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
8
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
9
LOCK BOLT MECHANICAL
5211649
Not Available
10
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
11
ROLLER SPRING ADJ.
5431168
Not Available
12
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
13
COLLAR-BRG. LOCK
5010155
Not Available
14
SCREW SOCKET SET
7512257
$7,34 Unit Price incl. VAT
15
WASHER THRUST(10) Substituted by 7555871
7555862
$10,49 Unit Price incl. VAT
16
WHEEL CARRIER
1543023
Not Available
17
SPRING RH TORS(.421DIA) (.421) Med.
7041462067
$209,99 Unit Price incl. VAT
17
SPRING LH TORS(.406DIA) (.406) Std.
7041463067
Not Available
17
SPRING RH TORS(.406DIA) (.406) Std.
7041464067
Not Available
17
SPRING LH TORS(.421DIA) (.421) Med.
7041461067
Not Available
18
WASHER THRUST
7555787
$10,49 Unit Price incl. VAT
19
SLEEVE TORSION SPRING
5431923
$11,54 Unit Price incl. VAT
20
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
21
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
22
STRAP R.LIMITER
5410985
$25,08 Unit Price incl. VAT
23
BUSHING PIVOT TUBE
5020561
$2,61 Unit Price incl. VAT
24
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
25
WASHER WAVE SPRING(10)
7555795
$2,09 Unit Price incl. VAT
26
SPACER
5333420
$19,20 Unit Price incl. VAT
27
ROD SHOCK
1541015067
Not Available
28
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
29
NUT FLEX-LOC(10)
7542303
$11,54 Unit Price incl. VAT
30
BUSHING
5430537
$7,34 Unit Price incl. VAT
31
BUSHING R.SHOCK
5333030
Not Available
32
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
33
SHOCK GAS ADJ R.TRACK
7041441
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
