1
Engine displacement
440
2
Year
1996
3
Trim
440 L/C - 0962760
4
Parts Catalog

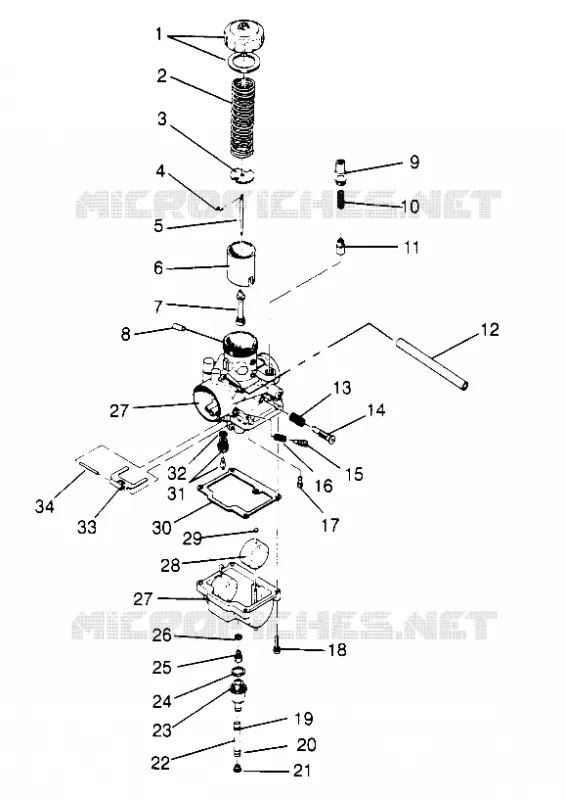

CARBURETOR 440 0962760 (4931743174C009)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT 440 0962760 (4931743174C008)
by
FUEL PUMP 440 0962760 (4931743174C010)
CARBURETOR 440 0962760 (4931743174C009)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
1
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130318
$47,24 Unit Price incl. VAT
3
PLATE THROTTLE
3130027
$19,94 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE Substituted by 3130329
3130158
Not Available
6
VALVE THROTTLE 2.0 (2.0)
3130464
Not Available
7
JET NEEDLE P-2 (P-2)
3130460
Not Available
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
12
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
13
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
14
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
15
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
16
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
17
JET PILOT #40(10) (No. 40)
3130067
Not Available
18
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
19
CLAMP HOSE
7080534
$3,14 Unit Price incl. VAT
20
CLAMP HOSE(10)
7080544
Not Available
21
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
22
FUEL LINE 5 FT.
8450045153
8450123-153
$157,49 Unit Price incl. VAT
23
FITTING SEDIMENT Substituted by 3130573
5020476
$18,68 Unit Price incl. VAT
24
O-RING
3130239
Not Available
25
JET MAIN HX.HD#260(10)
3130129
$15,74 Unit Price incl. VAT
26
WASHER
3130014
$3,14 Unit Price incl. VAT
27
CARBURETOR ASM. (Incl. 1-11 13-18 24-34)
3130630
Not Available
28
ASM. FLOAT
3130430
$73,49 Unit Price incl. VAT
29
CAP
3130237
$8,39 Unit Price incl. VAT
30
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
31
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
32
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
33
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
34
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
