1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI - R13VH57AD/6EAK
4
Parts Catalog

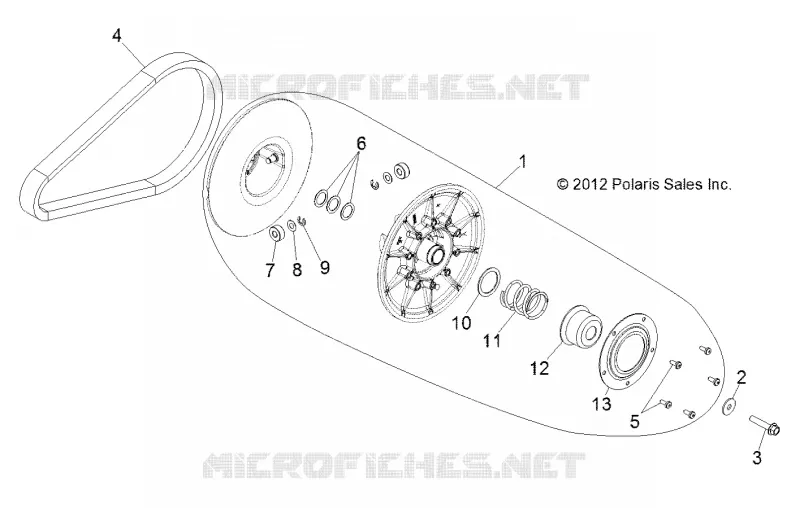

DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNALS
by
DRIVE TRAIN, SECONDARY CLUTCH
DRIVE TRAIN, SECONDARY CLUTCH
1
1
2
3
4
5
6
7
8
9
10
11
11
12
13
1
Asm. Driven Clutch [Incl. 2 4 7-12][Built 9/10/12 and Before]
1323038
1323070
$650,99 Unit Price incl. VAT
1
ASM. DRIVEN CLUTCH [INCL. 2-8]
1323070
$650,99 Unit Price incl. VAT
2
WASHER-FLAT 3/8 TYPE B(W)-SS
7555846
$10,49 Unit Price incl. VAT
3
SCR-HXFL-M10X1.25X60 ZOD
7519210
$3,14 Unit Price incl. VAT
4
BELT DRIVE
3211143
$134,91 Unit Price incl. VAT
5
SCR-TORX M6X1.0X16
7519735
$17,84 Unit Price incl. VAT
6
WSHR-THRUST 1.189X0.838X0.12
7556745
$10,49 Unit Price incl. VAT
7
ROLLER-CLUTCH .955 ODX.450
5439831
$68,24 Unit Price incl. VAT
8
WASHER THRUST
7556226
$10,49 Unit Price incl. VAT
9
RET.E-RING-E T.375-TEAM#130059
7710523
$5,24 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SPRING-DRIVEN 104-173
7044015
$89,24 Unit Price incl. VAT
11
SPRING DRIVEN
3235088
$204,74 Unit Price incl. VAT
12
CUP-SPRING BOSS LW UTILITY
5256403
$83,99 Unit Price incl. VAT
13
Plate Retainer Boss LW Utility
5256404
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
