1
Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN 1000 XP 48" TRAIL PACKAGE
4
Parts Catalog
BATTERY
5

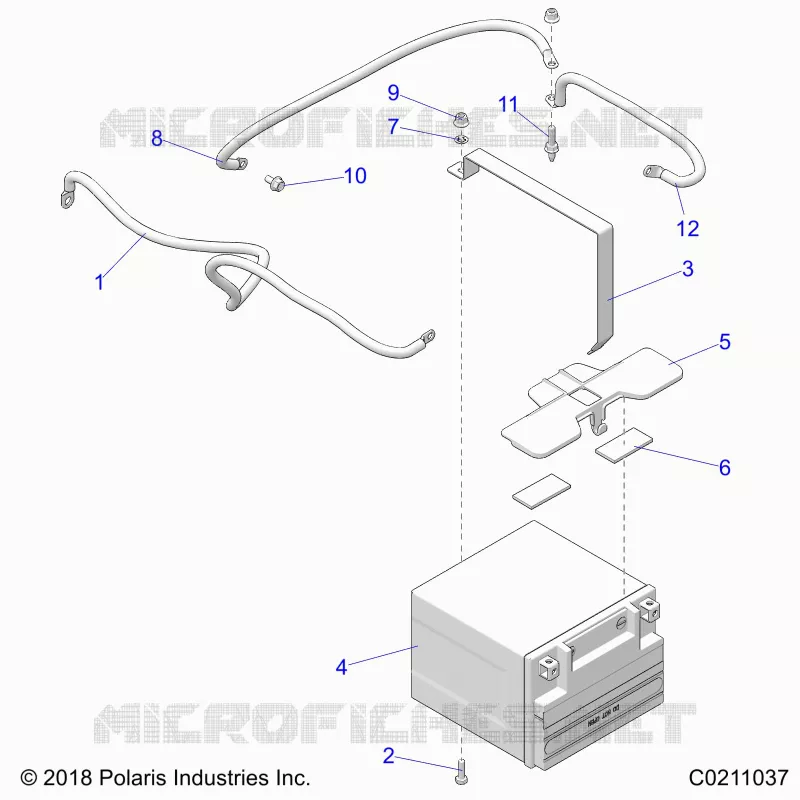

Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR GEARCASE INTERNALS
by
SWITCHES, SENSORS, ECU AND CONTROL MODULES
BATTERY
1
2
3
4
5
6
7
8
9
10
11
12
1
CABLE BATTERY/SOLENOID
4012710
$83,99 Unit Price incl. VAT
2
SCR-6MMX1X20 HX/CP
7518925
$6,29 Unit Price incl. VAT
3
BRKT-BATTERY 30AH
5253600
$68,24 Unit Price incl. VAT
4
BATTERY-30AH 12 VOLT AGM
4014609
$283,49 Unit Price incl. VAT
5
COVER BATTERY
5438299
$29,39 Unit Price incl. VAT
6
PAD-FOAM SHIM TRUNK
5413465
$12,59 Unit Price incl. VAT
7
RETAINER-BOLT 1/4-20
7670154
$2,09 Unit Price incl. VAT
8
CABLE BLACK
4012709
$62,99 Unit Price incl. VAT
9
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
10
SCR-HXFL-M6X1.0X12 8.8 ZOD P30
7519145
$7,34 Unit Price incl. VAT
11
STUD-M6X1.0X19-M6 TAPTITE
7519333
$14,69 Unit Price incl. VAT
12
CABLE-BATT 6GA BK 85 85 M6
4014525360
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
