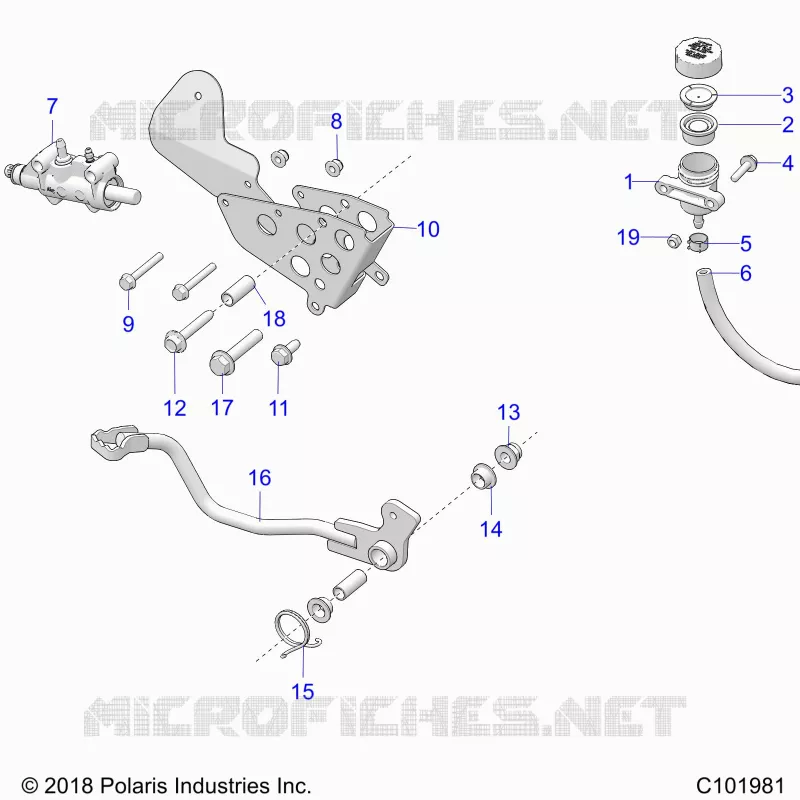

BRAKES, BRAKE PEDAL AND MASTER CYLINDER FOR SPORTSMAN 850 48" ULTIMATE TRAIL PACKAGE FROM 2023

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

1

ASM-RESERVOIR BRAKE TALL 2-EAR [INCL. 1-3]

1911224

$68,24 Unit Price incl. VAT

2

DIAPHRAGM RESERVOIR BRAKE

5413262

$9,44 Unit Price incl. VAT

3

RING RESERVOIR BRAKE

5437041

$10,49 Unit Price incl. VAT

4

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$6,29 Unit Price incl. VAT

5

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

6

HOSE-RESERVOIR BRAKE 826MM

1911267826

$29,39 Unit Price incl. VAT

7

ASM-M/CYL DIRMC 3/4# B/U-RING

1913033

$257,24 Unit Price incl. VAT

8

NUT-M6 FLANGE NYLOC

7547274

$2,09 Unit Price incl. VAT

9

SCR-M6X1.0X45 HX-FL-Y/D

7517950

$10,49 Unit Price incl. VAT

10

BRKT-BRAKE MOUNT BLK

5266924329

$68,24 Unit Price incl. VAT

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$4,19 Unit Price incl. VAT

12

SCR-THFHL-M8X1.25X50 CHS ZOD

7518677

$7,34 Unit Price incl. VAT

13

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

14

BUSHING PIVOT PEDAL

5433189

$7,34 Unit Price incl. VAT

15

SPRING-TORSION BRAKE

7041750

$16,79 Unit Price incl. VAT

16

WELD-LEVER BRAKE WL SPMN BLK

1913603067

$104,99 Unit Price incl. VAT

17

BOLT-M10X1.25X50 HXFLG-OLIVE D

7518559

$10,49 Unit Price incl. VAT

18

SPACER-12.7X10.2X30.5MM

5135720

$12,59 Unit Price incl. VAT

19

NUT-6MM X 1 NYLOK-Z

7546703

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
