ENGINE, COOLING SYSTEM AND WATER PUMP FOR SPORTSMAN 850 48" ULTIMATE TRAIL PACKAGE FROM 2023

ENGINE, COOLING SYSTEM

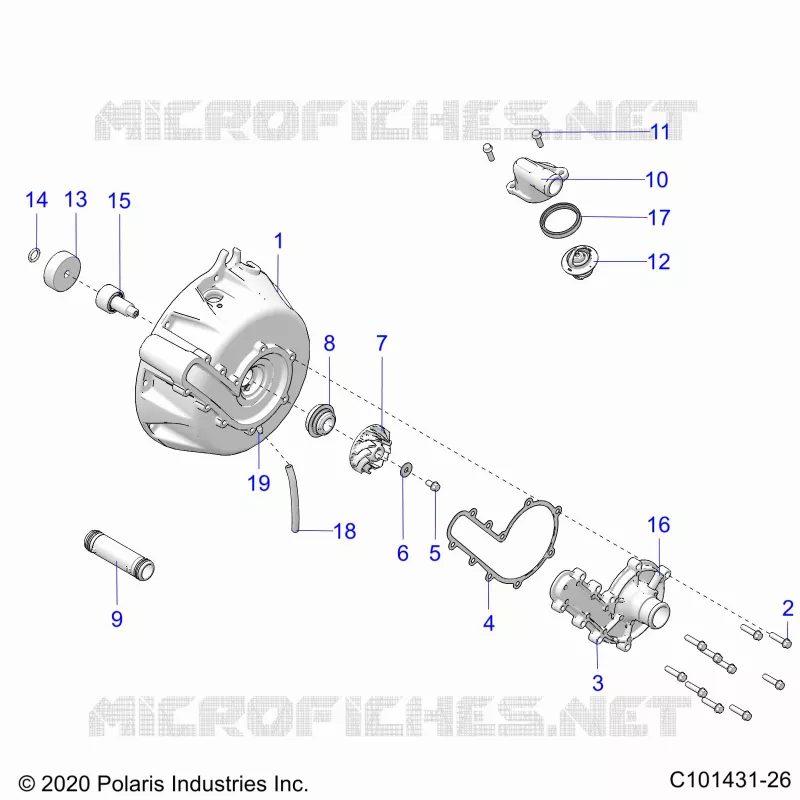

ENGINE, COOLING SYSTEM AND WATER PUMP

-

ASM-STATOR CVR W/WATERPUMP [INCL 1-9 13-16 AND 18 19]

1208906

$734,99 Unit Price incl. VAT

1

COVER-STATOR W/WATERPMP

5144073

$734,99 Unit Price incl. VAT

2

SCR-M6X1.0X25-HXHD CLR COAT

7527861

$5,24 Unit Price incl. VAT

3

COVER-WATERPMP W/BP [INCL. COVER FITTING GASKET]

5144074

$125,99 Unit Price incl. VAT

4

GASKET COVER

5412954

$57,74 Unit Price incl. VAT

5

SCR-M6X1.0X12-HXHD

7527860

$5,24 Unit Price incl. VAT

6

WASHER-FLAT M6

7558730

$7,34 Unit Price incl. VAT

7

IMPELLER-WATERPMP CAST 60MM

5639192

$89,24 Unit Price incl. VAT

8

SEAL

3610136

$131,24 Unit Price incl. VAT

9

O-RING .864X1.00X.07

5412955

$13,64 Unit Price incl. VAT

9

TUBE WATER TRANSFER [INCL. 6]

5453707

$157,49 Unit Price incl. VAT

10

COVER-THERMOSTAT

5632606

$83,99 Unit Price incl. VAT

11

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$6,29 Unit Price incl. VAT

12

THERMOSTAT

7052561

$83,99 Unit Price incl. VAT

13

COUPLER SPLINE INT WP BEARING

5140079

$62,99 Unit Price incl. VAT

14

O-RING-12.37X2.62 VITON

5417753

$3,14 Unit Price incl. VAT

15

BEARING-W/SHAFT WATERPUMP OPC

3514921

$88,19 Unit Price incl. VAT

16

WRENCH-8MMX10MM OPEN END

Not Available

17

SEAL-THERMOSTAT

5413948

$14,69 Unit Price incl. VAT

18

TUBING-NYLON 5MMX100MM BLK

8360209

$27,29 Unit Price incl. VAT

19

FITTING-6 MM BRASS

7055562

$25,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
