1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI - A09MN50AN/AX
4
Parts Catalog

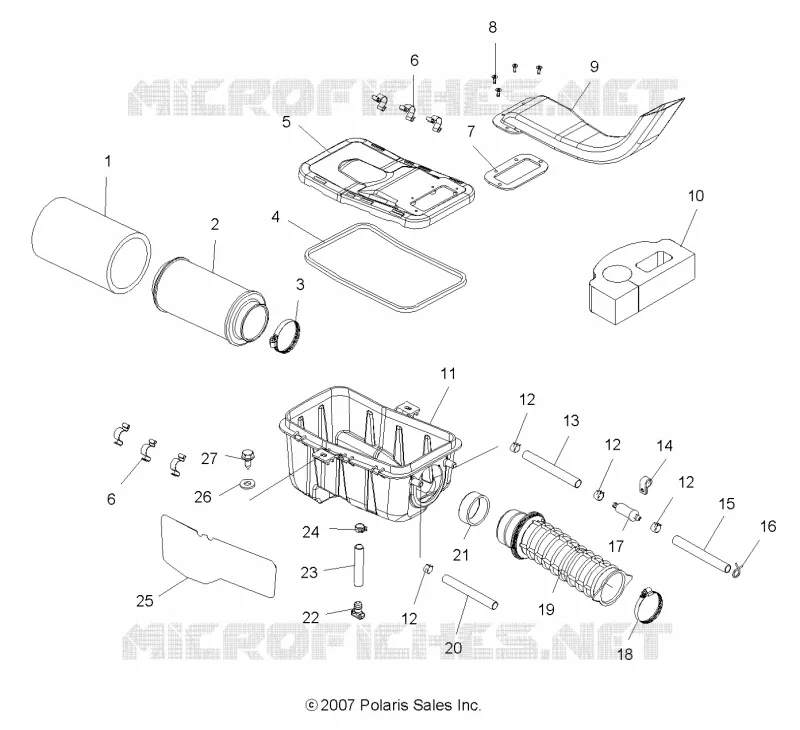

ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
TAIL LAMPS
by
ENGINE, MOUNTING
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
6
7
8
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
4
4
5
6
7
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Filter Pre-Cleaner Sleeve
5811633
$19,20 Unit Price incl. VAT
2
FILTER AIR INTAKE
7080595
7083107
$51,23 Unit Price incl. VAT
3
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
4
Seal Air Box Cover
5812829
5813949
$52,49 Unit Price incl. VAT
5
Cover Air Box
5432868
$104,99 Unit Price incl. VAT
6
CLIP-AIR BOX
5242044
$17,84 Unit Price incl. VAT
7
GASKET INTAKE
5411422
$10,49 Unit Price incl. VAT
8
SCREW(10)
7517317
$6,29 Unit Price incl. VAT
9
Duct Air Inlet
5436937
$104,99 Unit Price incl. VAT
10
SEAL FOAM
5811626
$57,74 Unit Price incl. VAT
11
Box Air
5436454
$230,99 Unit Price incl. VAT
12
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
13
LINE BREATHER 3/8 ID.
8450073600
$136,49 Unit Price incl. VAT
14
P-Clamp
7080913
$10,49 Unit Price incl. VAT
15
Hose Breather
5413104
Not Available
16
Clamp Hose Spring .75 Inch
7080694
$10,49 Unit Price incl. VAT
17
FILTER BREATHER IN LINE
2530029
$11,54 Unit Price incl. VAT
18
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
19
Boot Throttle Body
5412962
$73,49 Unit Price incl. VAT
20
Line Breather
5413003
Not Available
21
SLEEVE CARBURETOR INNER
5433847
$27,29 Unit Price incl. VAT
22
Plug Trap
5435299
$12,59 Unit Price incl. VAT
23
FUEL LINE
8450059150
$115,49 Unit Price incl. VAT
24
CLAMP HOSE (10)
7080650
$7,34 Unit Price incl. VAT
25
Foil [If built after 10/5/05]
5813042
$36,74 Unit Price incl. VAT
26
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
27
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
